FJPF2145TU دیتاشیت

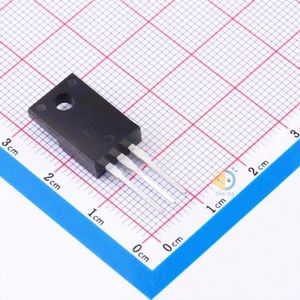

FJPF2145TU

مشخصات دیتاشیت

نام دیتاشیت FJPF2145TU
حجم فایل 70.016 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت FJPF2145TU

دانلود دیتاشیت

سایر مستندات

FJPF2145 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi FJPF2145TU
  • Transistor Type: NPN
  • Operating Temperature: -55°C~+125°C@(Tj)
  • Collector Current (Ic): 5A
  • Power Dissipation (Pd): 40W
  • Transition Frequency (fT): 15MHz
  • DC Current Gain (hFE@Ic,Vce): 20@200mA,5V
  • Collector Cut-Off Current (Icbo): -
  • Collector-Emitter Breakdown Voltage (Vceo): 800V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 159mV@1.5A,300mA
  • Package: TO-220F-3
  • Manufacturer: onsemi
  • Series: ESBC™
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 5A
  • Voltage - Collector Emitter Breakdown (Max): 800V
  • Vce Saturation (Max) @ Ib, Ic: 2V @ 300mA, 1.5A
  • Current - Collector Cutoff (Max): 10µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 200mA, 5V
  • Power - Max: 40W
  • Frequency - Transition: 15MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220F
  • Base Part Number: FJPF21
  • detail: Bipolar (BJT) Transistor NPN 800V 5A 15MHz 40W Through Hole TO-220F
