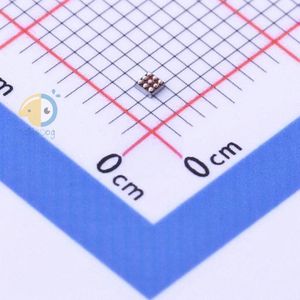

FAN48618BUC53X دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FAN48618BUC53X
|
|
حجم فایل
|
70.016
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
onsemi FAN48618BUC53X
-
Output Type:
Fixed
-
Input Voltage:
2.7V~4.8V
-
Output Voltage:
5.25V
-
Number of Outputs:
1
-
Switching Frequency:
2.5MHz
-
Output Current (Max):
1.2A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
WLCSP-9
-
Manufacturer:
onsemi
-
Series:
TinyBoost®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
2.7V
-
Voltage - Input (Max):
4.8V
-
Voltage - Output (Min/Fixed):
5.25V
-
Voltage - Output (Max):
-
-
Current - Output:
1.2A
-
Frequency - Switching:
2.5MHz
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
9-UFBGA, WLCSP
-
Supplier Device Package:
9-WLCSP (1.22x1.22)
-
Base Part Number:
FAN48618
-
detail:
Boost Switching Regulator IC Positive Fixed 5.25V 1 Output 1.2A 9-UFBGA, WLCSP
