NCL30186ADR2G دیتاشیت

مشخصات دیتاشیت

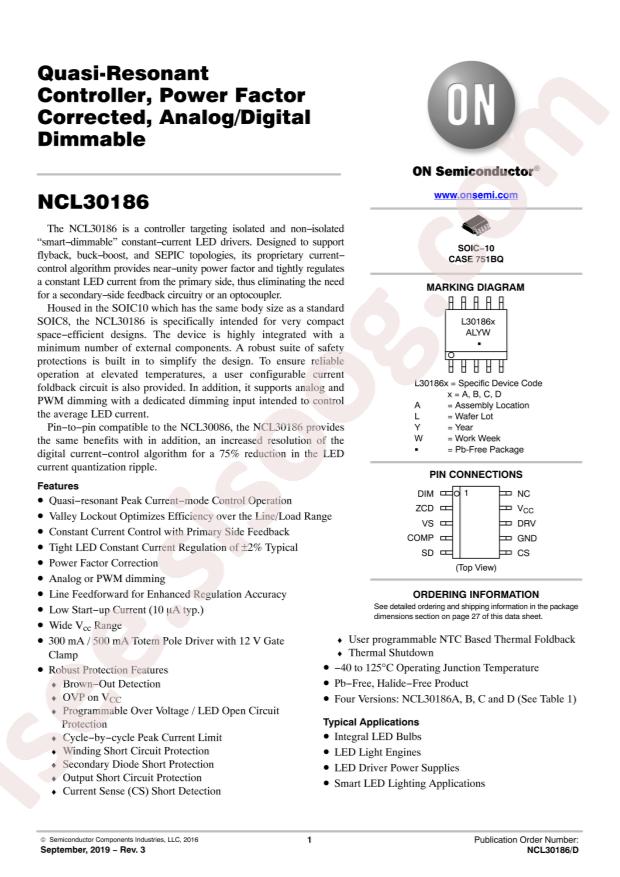

مشاهده دیتاشیت NCL30186ADR2G	دانلود دیتاشیت

NCL30186 28 pages

RoHS: true
Category: Nixie Tube Driver/LED Driver/LED Drivers
Datasheet: onsemi NCL30186ADR2G
Package: SOIC-10
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Type: AC DC Offline Switcher
Topology: Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s): No
Number of Outputs: 1
Voltage - Supply (Min): 8.8V
Voltage - Supply (Max): 25.5V
Voltage - Output: -
Current - Output / Channel: -
Frequency: -
Dimming: Analog, PWM
Applications: Lighting
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package / Case: 10-SOP (0.154", 3.90mm Width)
Supplier Device Package: 10-SOIC
Base Part Number: NCL30186
detail: LED Driver IC 1 Output AC DC Offline Switcher Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 10-SOIC
