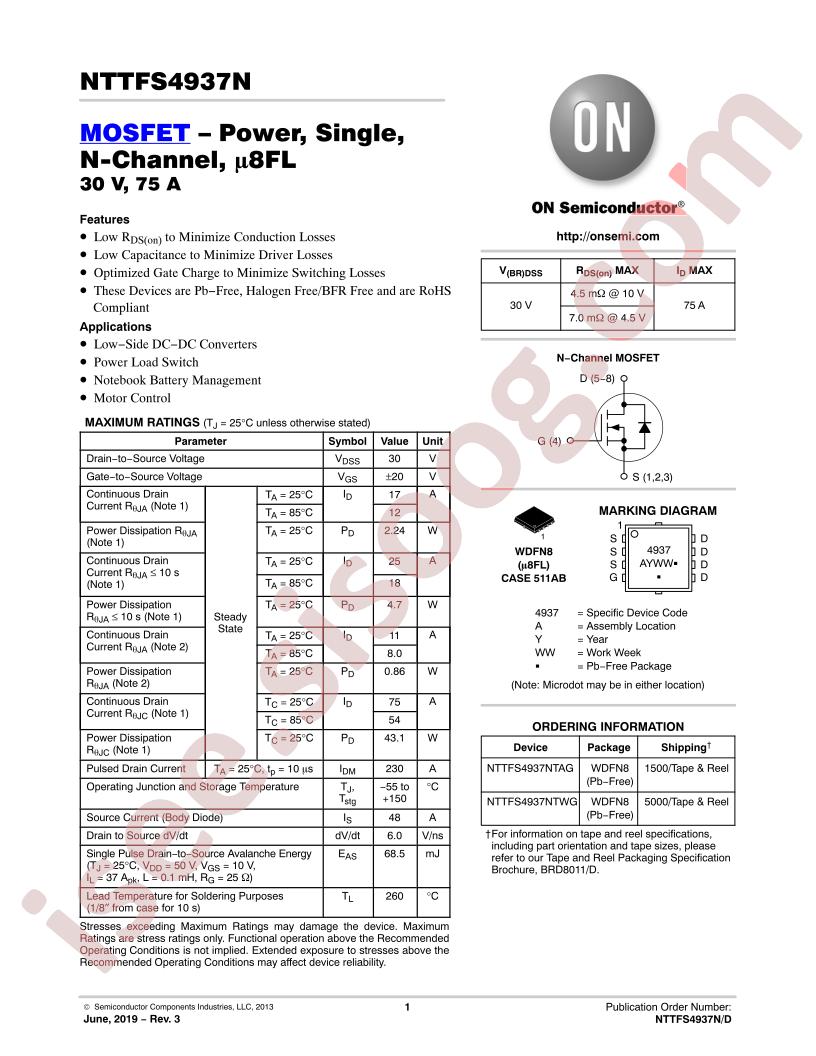

NTTFS4937N دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTTFS4937N
|
|
حجم فایل
|
132.229
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTTFS4937NTWG
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
43.1W
-
Total Gate Charge (Qg@Vgs):
15.7nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
2.54nF@15V
-
Continuous Drain Current (Id):
75A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.6V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
26pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.4mΩ@10V,10A
-
Package:
WDFN-8(3x3)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
11A (Ta), 75A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
4.5mOhm @ 20A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
35.5nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2540pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
860mW (Ta), 43.1W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-WDFN (3.3x3.3)
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
NTTFS4
-
detail:
N-Channel 30V 11A (Ta), 75A (Tc) 860mW (Ta), 43.1W (Tc) Surface Mount 8-WDFN (3.3x3.3)
