FDD14AN06LA0-F085 دیتاشیت

FDD14AN06LA0-F085

مشخصات دیتاشیت

نام دیتاشیت FDD14AN06LA0-F085
حجم فایل 64.335 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت FDD14AN06LA0-F085

دانلود دیتاشیت

سایر مستندات

FDD14AN06LA0_F085 11 pages

مشخصات فنی

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/MOSFETs

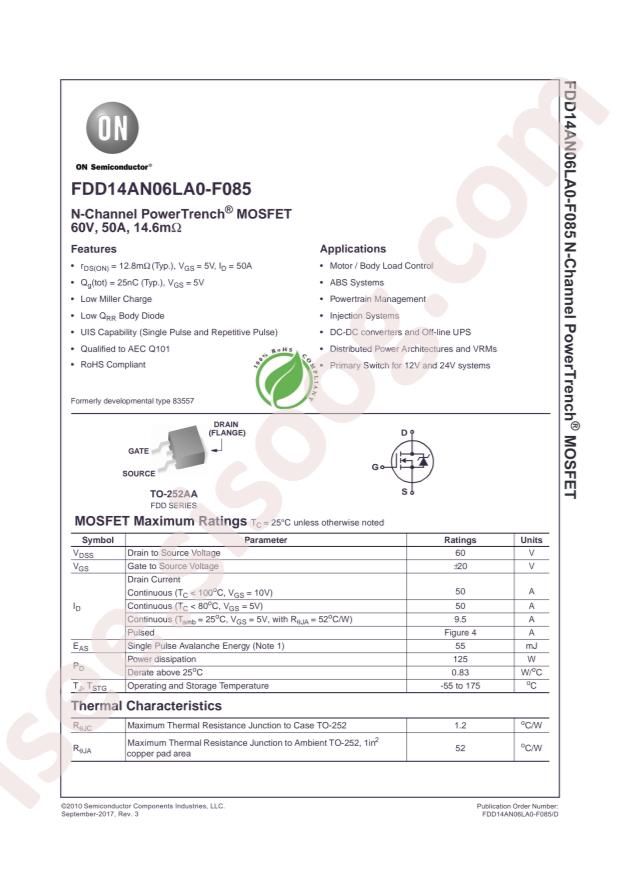

  • Datasheet: onsemi FDD14AN06LA0-F085
  • Power Dissipation (Pd): -
  • Total Gate Charge (Qg@Vgs): -
  • Drain Source Voltage (Vdss): -
  • Input Capacitance (Ciss@Vds): -
  • Continuous Drain Current (Id): -
  • Gate Threshold Voltage (Vgs(th)@Id): -
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): -
  • Package: TO-252AA
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101, PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 50A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
  • Rds On (Max) @ Id, Vgs: 11.6mOhm @ 50A, 10V
  • Vgs(th) (Max) @ Id: 3V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 32nC @ 5V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2810pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 125W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: TO-252AA
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: FDD14
  • detail: N-Channel 60V 9.5A (Ta), 50A (Tc) 125W (Tc) Surface Mount TO-252AA
