دیتاشیت HUFA76407DK8T-F085

HUFA76407DK8T_F085

مشخصات دیتاشیت

نام دیتاشیت HUFA76407DK8T_F085
حجم فایل 1006.255 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت HUFA76407DK8T_F085

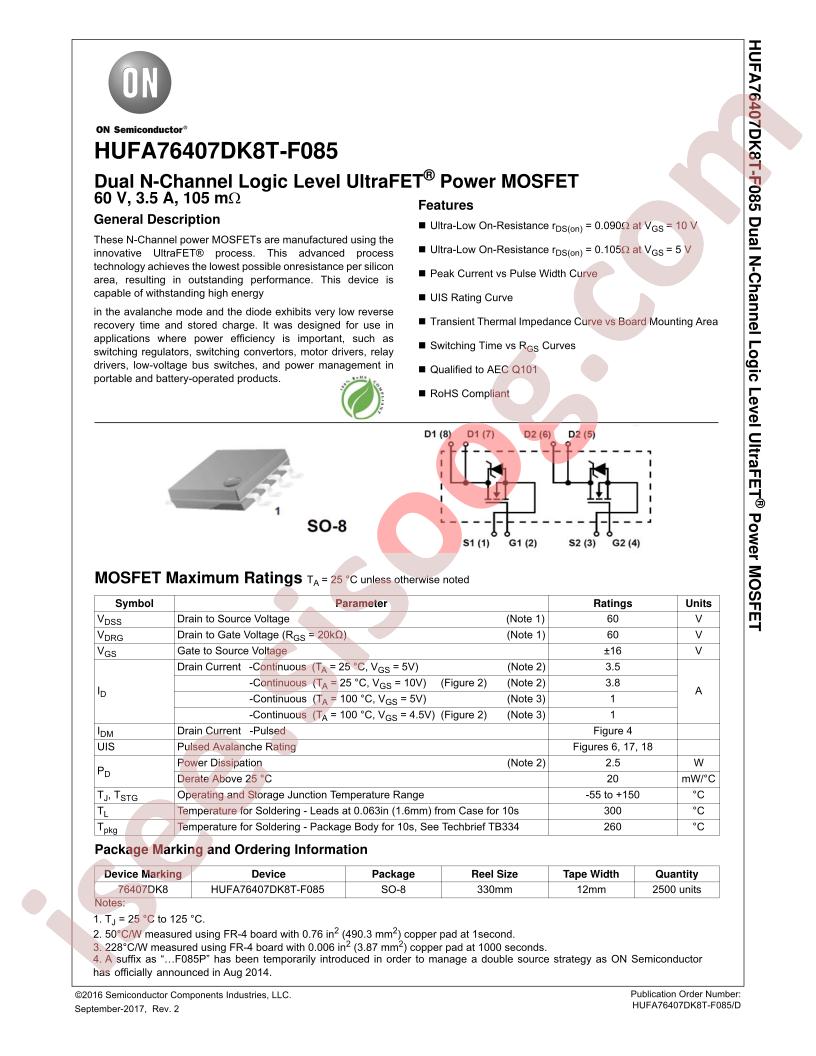

HUFA76407DK8T_F085 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: Automotive, AEC-Q101, UltraFET™
  • Packaging: Tape & Reel (TR)
  • Part Status: Not For New Designs
  • FET Type: 2 N-Channel (Dual)
  • FET Feature: Logic Level Gate
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: -
  • Rds On (Max) @ Id, Vgs: 90mOhm @ 3.8A, 10V
  • Vgs(th) (Max) @ Id: 3V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 11.2nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 330pF @ 25V
  • Power - Max: 2.5W
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: HUFA76
  • detail: Mosfet Array 2 N-Channel (Dual) 60V 2.5W Surface Mount 8-SOIC
