دیتاشیت NVD6820NLT4G-VF01

مشخصات دیتاشیت

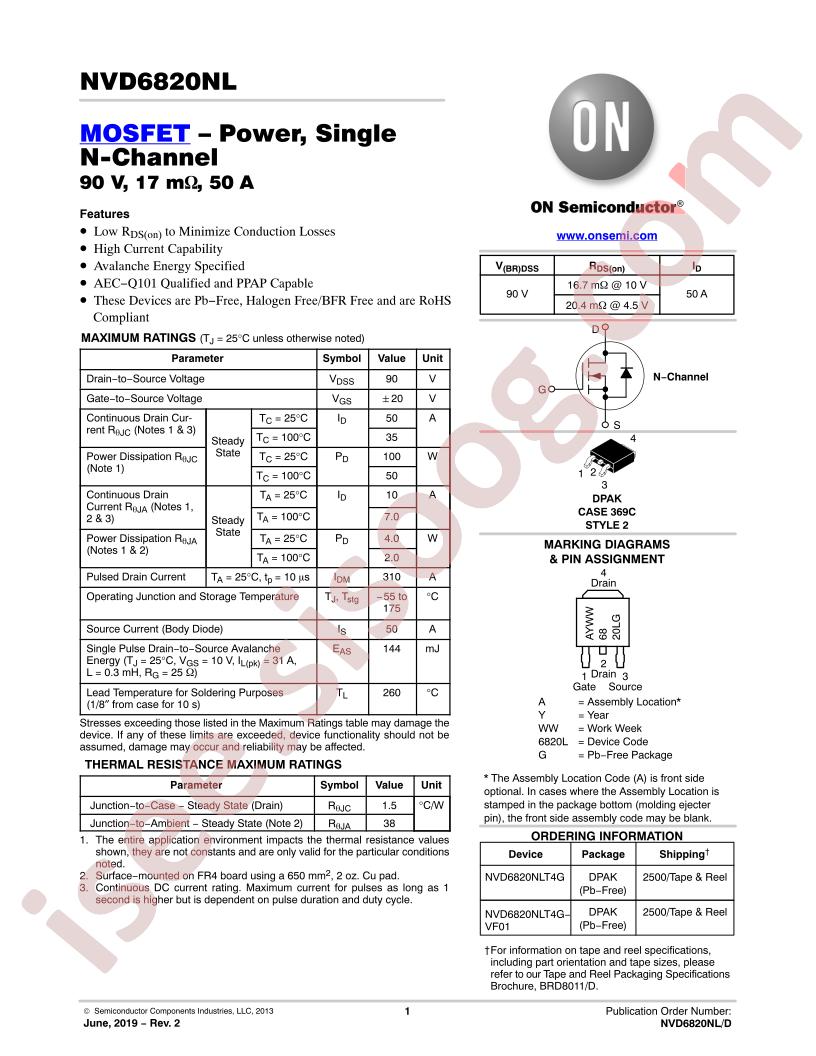

دانلود دیتاشیت NVD6820NL	NVD6820NL Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Cut Tape (CT)
Part Status: Obsolete
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 90V
Current - Continuous Drain (Id) @ 25°C: 10A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 16.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 44nC @ 4.5V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 4209pF @ 25V
FET Feature: -
Power Dissipation (Max): 4W (Ta), 100W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Supplier Device Package: DPAK
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Base Part Number: NVD682
detail: N-Channel 90V 10A (Ta), 50A (Tc) 4W (Ta), 100W (Tc) Surface Mount DPAK
