NCP81080 دیتاشیت

NCP81080

مشخصات دیتاشیت

نام دیتاشیت NCP81080
حجم فایل 192.832 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت NCP81080

دانلود دیتاشیت

سایر مستندات

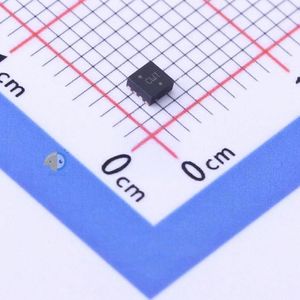

NCP81080MNTBG 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP81080DR2G
  • Fall Time: 17ns
  • Load Type: MOSFET
  • Rise Time: 19ns
  • Supply Voltage: 5.5V~20V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 800mA
  • Peak Output Current(source): 500mA
  • Package: VFDFN-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Channel Type: Synchronous
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 5.5V ~ 20V
  • Logic Voltage - VIL, VIH: 1.2V, 1.8V
  • Current - Peak Output (Source, Sink): 500mA, 800mA
  • Input Type: TTL
  • Rise / Fall Time (Typ): 19ns, 17ns
  • Mounting Type: Surface Mount

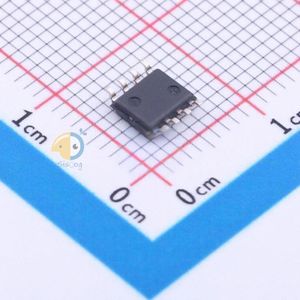

  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: NCP81080
  • detail: Half-Bridge Gate Driver IC TTL 8-SOIC
