دیتاشیت NRVUD340T4G-VF01

MURD/NRVUD340T4G

مشخصات دیتاشیت

نام دیتاشیت MURD/NRVUD340T4G
حجم فایل 102.852 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

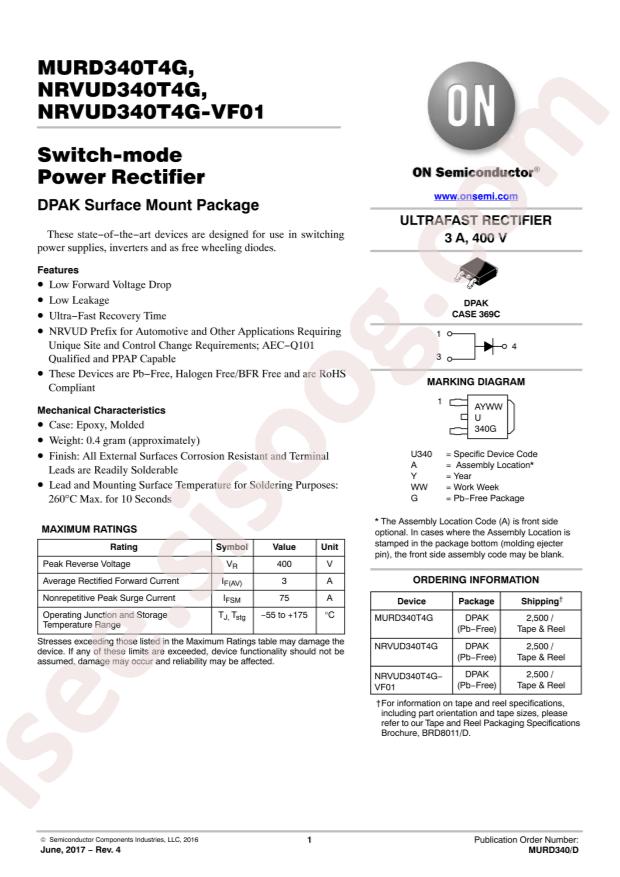

دانلود دیتاشیت MURD/NRVUD340T4G

MURD/NRVUD340T4G Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: onsemi NRVUD340T4G-VF01
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 400V
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Forward Voltage (Vf@If): 1.15V@3A
  • Reverse Leakage Current: 5uA@400V
  • Reverse Recovery Time (trr): 50ns
  • Average Rectified Current (Io): 3A
  • Package: TO-252
  • Manufacturer: onsemi
  • Series: SWITCHMODE™
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 400V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 1.15V @ 3A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 5µA @ 400V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Base Part Number: NRVUD34
  • detail: Diode Standard 400V 3A Surface Mount DPAK
