RURD620CCS9A-F085P 数据手册
其他文档
RURD620CCS9A 6 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistor Arrays

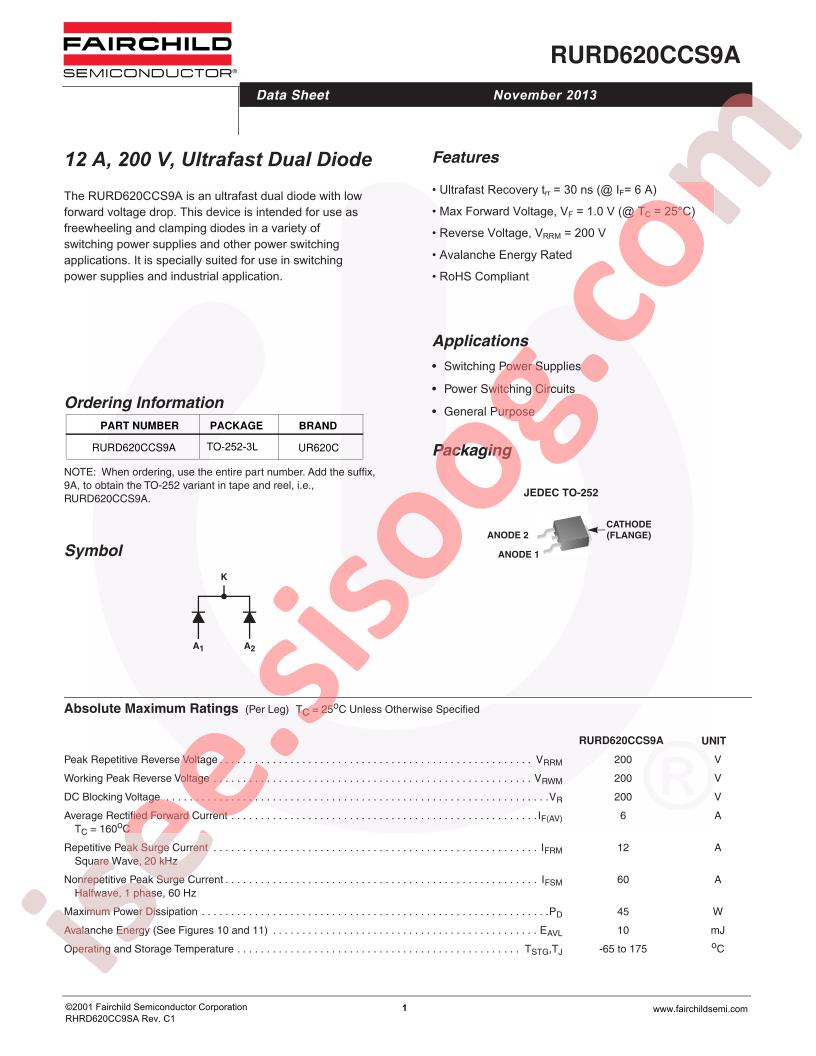

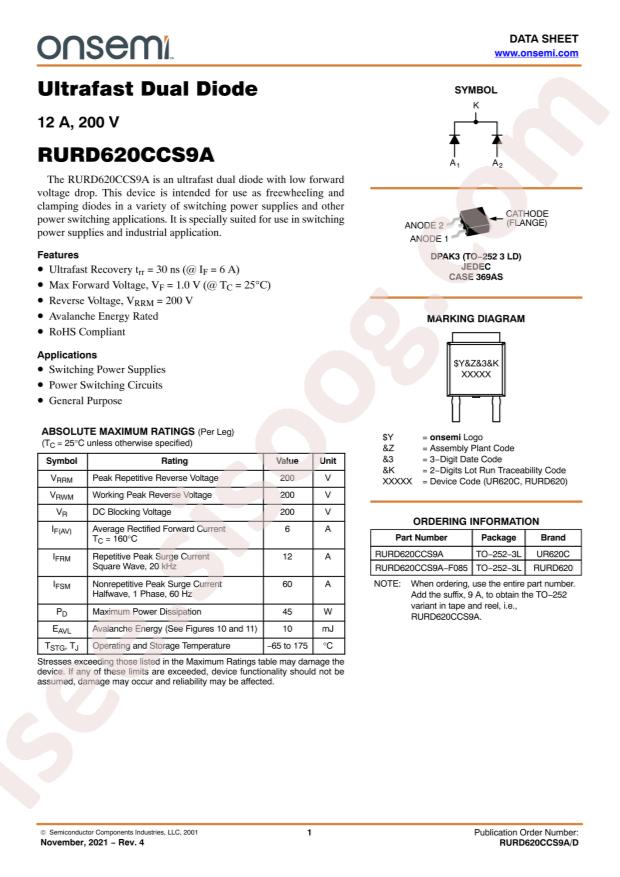

- Datasheet: onsemi RURD620CCS9A-F085P
- Package: TO-252
- Manufacturer: onsemi
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200V
- Current - Average Rectified (Io) (per Diode): 6A
- Voltage - Forward (Vf) (Max) @ If: 1V @ 6A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30ns
- Current - Reverse Leakage @ Vr: 100µA @ 200V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252, (D-Pak)
- Base Part Number: RURD62
- detail: Diode Array 1 Pair Common Cathode Standard 200V 6A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63
