NVMYS4D1N06CLTWG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

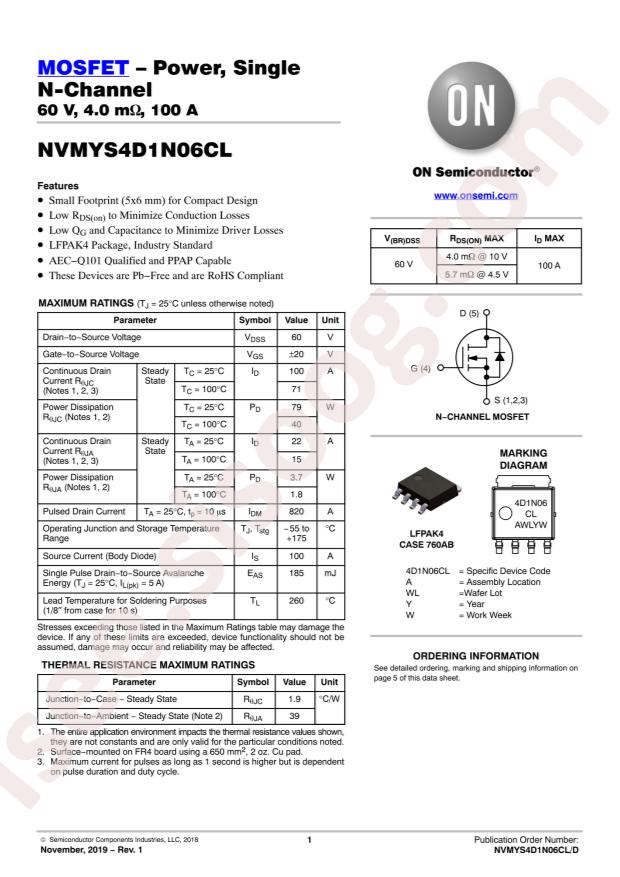

NVMYS4D1N06CLTWG
|
|
حجم فایل
|
92.41
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMYS4D1N06CLTWG
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3.7W;79W
-
Total Gate Charge (Qg@Vgs):
34nC@10V
-
Input Capacitance (Ciss@Vds):
2200pF@25V
-
Continuous Drain Current (Id):
22A;100A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@80uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4mΩ@50A,10V
-
Package:
SOT-1023
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
22A (Ta), 100A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
4mOhm @ 50A, 10V
-
Vgs(th) (Max) @ Id:
2V @ 80µA
-
Gate Charge (Qg) (Max) @ Vgs:
34nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2200pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.7W (Ta), 79W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
LFPAK4 (5x6)
-
Package / Case:
SOT-1023, 4-LFPAK
-
Base Part Number:
NVMYS4
-
detail:
N-Channel 60V 22A (Ta), 100A (Tc) 3.7W (Ta), 79W (Tc) Surface Mount LFPAK4 (5x6)
