دیتاشیت NCV4274ADT50RKG-IR01
مشخصات دیتاشیت
| نام دیتاشیت | NCV4274(A) |
|---|---|
| حجم فایل | 342.004 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت NCV4274(A) |

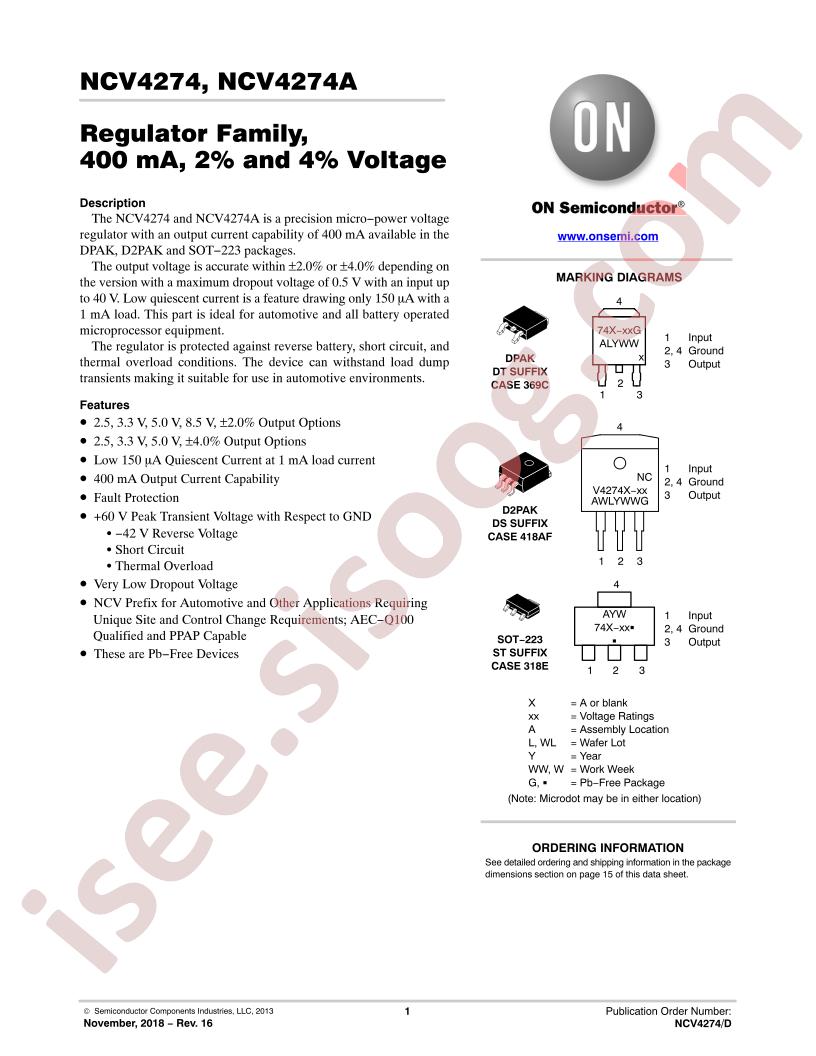

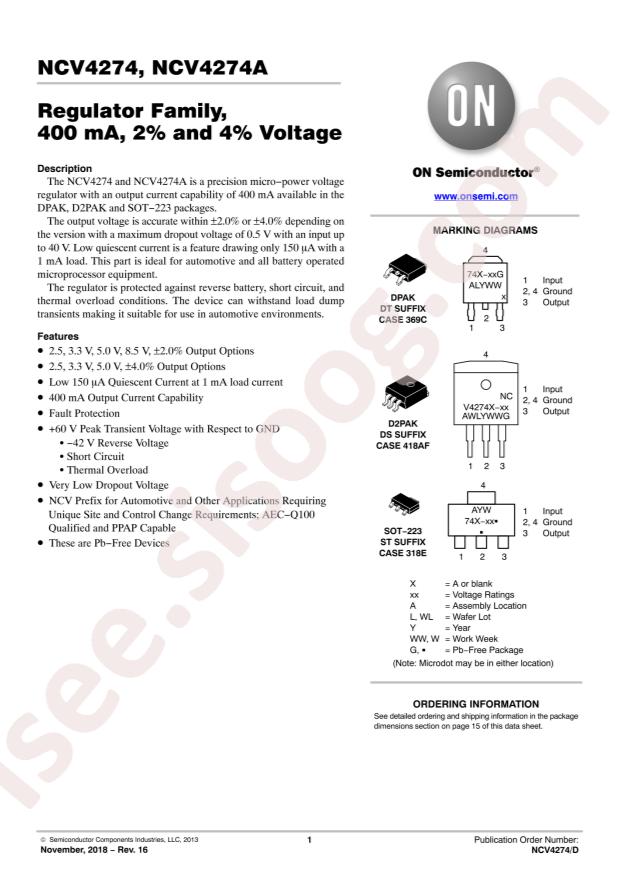

NCV4274(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Feature: Thermal Protection;Reverse connection protection
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi NCV4274ADT50RKG-IR01
- Output Current: 400mA
- Output Voltage: 5V
- Dropout Voltage: 0.5V@(250mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -40°C~+150°C
- Quiescent Current (Ground Current): 250uA
- Power Supply Rejection Ratio (PSRR): 60dB@(100Hz)
- Package: TO-252
- Manufacturer: onsemi
- Series: Automotive, AEC-Q100
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.5V @ 250mA
- Current - Output: 400mA
- Current - Quiescent (Iq): 250µA
- Current - Supply (Max): 35mA
- PSRR: 60dB (100Hz)
- Control Features: -
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package: D2PAK
- Base Part Number: NCV4274
- detail: Linear Voltage Regulator IC 1 Output 400mA D2PAK
