KA5L0565RYDTU دیتاشیت

KA5L0565RYDTU

مشخصات دیتاشیت

نام دیتاشیت KA5L0565RYDTU
حجم فایل 64.912 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

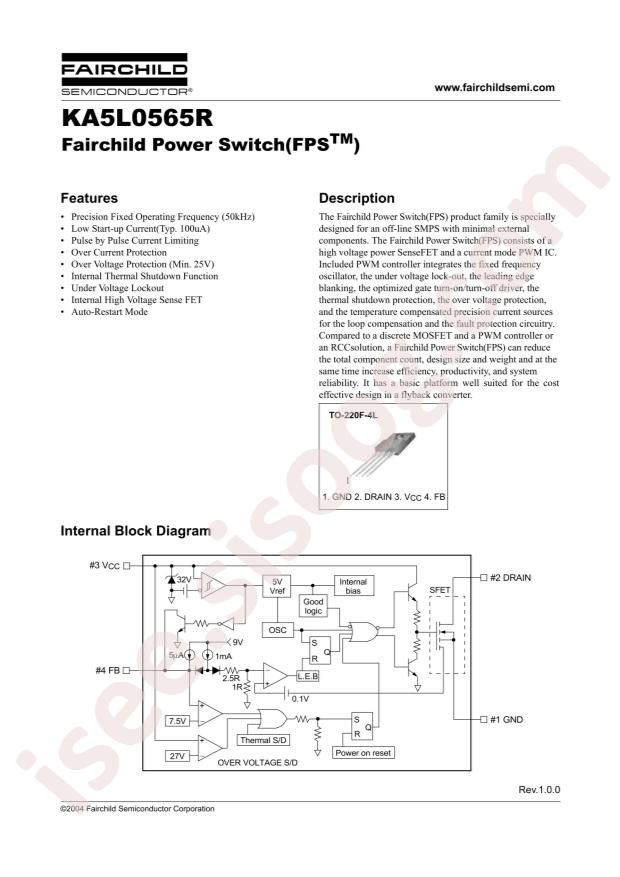

مشاهده دیتاشیت KA5L0565RYDTU

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback;Forward
  • Datasheet: onsemi KA5L0565RYDTU
  • Duty Cycle: 77%
  • Supply Voltage: 9V~30V
  • Breakdown Voltage: 650V
  • Switching Frequency: 50kHz
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Package: TO-220F-4
  • Manufacturer: onsemi
  • Series: FPS™
  • Packaging: Tube
  • Part Status: Not For New Designs
  • Output Isolation: -
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 650V
  • Voltage - Start Up: 15V
  • Voltage - Supply (Vcc/Vdd): 9V ~ 30V
  • Frequency - Switching: 50kHz
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Control Features: -
  • Package / Case: TO-220-4 Full Pack (Formed Leads)
  • Supplier Device Package: TO-220F-4L (Forming)
  • Mounting Type: Through Hole
  • Base Part Number: KA5L05
  • detail: Converter Offline Flyback, Forward Topology 50kHz TO-220F-4L (Forming)
