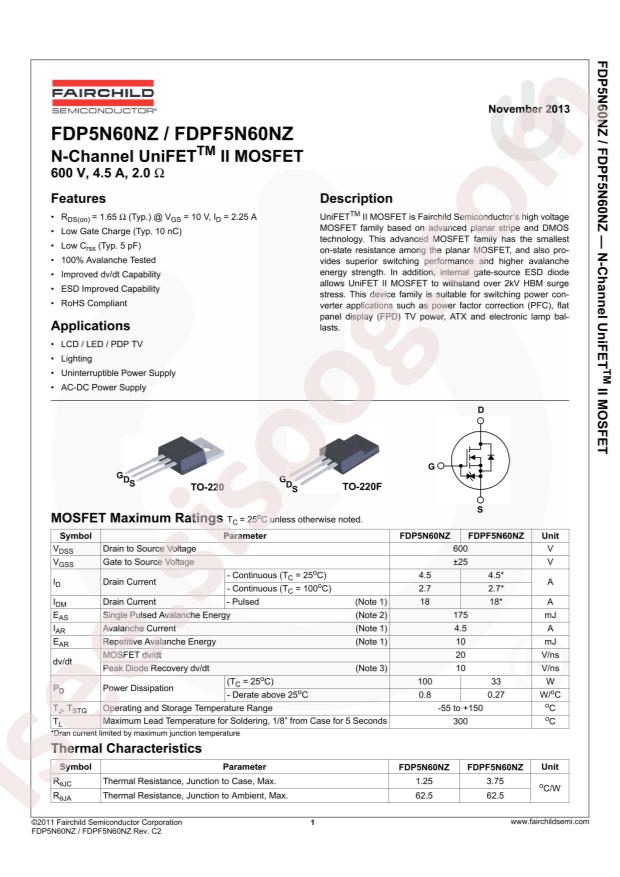

FDP5N60NZ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FDP5N60NZ
|
|
حجم فایل
|
87.133
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDP5N60NZ
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
100W
-
Total Gate Charge (Qg@Vgs):
10nC@10V
-
Drain Source Voltage (Vdss):
600V
-
Input Capacitance (Ciss@Vds):
450pF@25V
-
Continuous Drain Current (Id):
4.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
5pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.65Ω@10V,2.25A
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
UniFET-II™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
4.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
2Ohm @ 2.25A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
13nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
600pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
100W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220-3
-
Package / Case:
TO-220-3
-
Base Part Number:
FDP5
-
detail:
N-Channel 600V 4.5A (Tc) 100W (Tc) Through Hole TO-220-3
