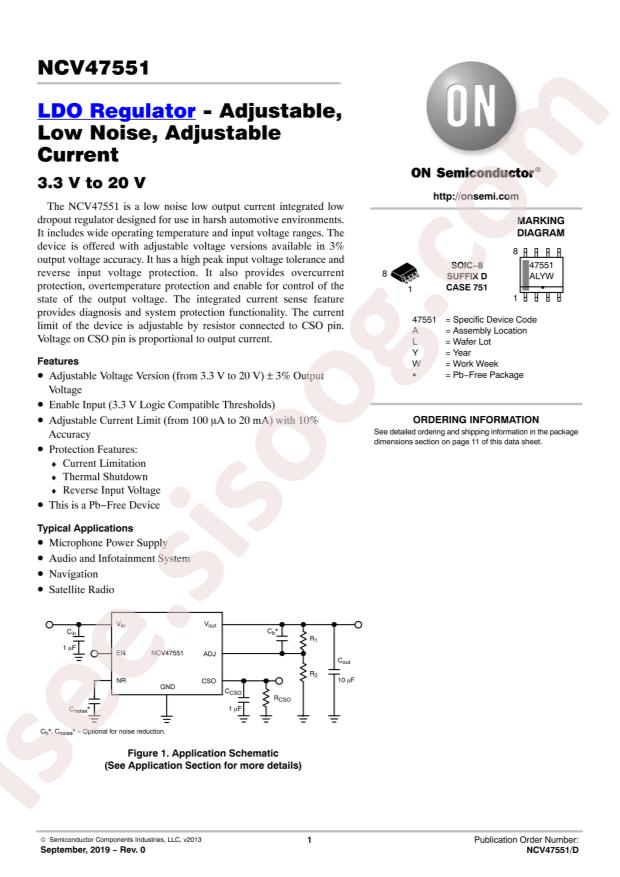

NCV47551DAJR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV47551DAJR2G
|
|
حجم فایل
|
73.051
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
RoHS:
true
-
Feature:
Overcurrent Protection;Thermal Protection;Reverse connection protection
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCV47551DAJR2G
-
Output Type:
Adjustable
-
Output Current:
20mA
-
Output Voltage:
3.3V~20V
-
Dropout Voltage:
0.5V@(10mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
40V
-
Operating Temperature:
-40°C~+150°C
-
Quiescent Current (Ground Current):
380uA
-
Power Supply Rejection Ratio (PSRR):
90dB@(1kHz)
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
20V
-
Voltage Dropout (Max):
0.5V @ 10mA
-
Current - Output:
20mA
-
Current - Quiescent (Iq):
380µA
-
Current - Supply (Max):
3mA
-
PSRR:
90dB ~ 85dB (1kHz ~ 100Hz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
NCV47551
-
detail:
Linear Voltage Regulator IC 1 Output 20mA 8-SOIC
