FAN53528DUC40X دیتاشیت

مشخصات دیتاشیت

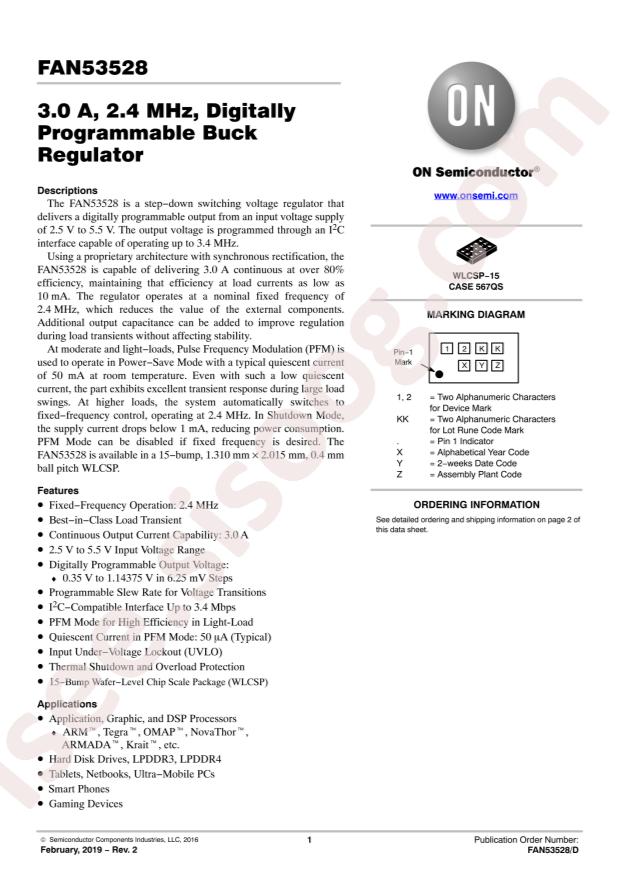

مشاهده دیتاشیت FAN53528DUC40X	دانلود دیتاشیت

مستندات دیگری یافت نشد!

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: onsemi FAN53528DUC40X
Input Voltage: 2.5V~5.5V
Output Voltage: 0.35V~1.14V
Number of Outputs: 1
Switching Frequency: 2.4MHz
Output Current (Max): 3A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: WLCSP-15
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Output Configuration: Positive
Output Type: Programmable
Voltage - Input (Min): 2.5V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.35V
Voltage - Output (Max): 1.14V
Current - Output: 3A
Frequency - Switching: 2.4MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 15-UFBGA, WLCSP
Supplier Device Package: 15-WLCSP (2.02x1.31)
Base Part Number: FAN53528
detail: Buck Switching Regulator IC Positive Programmable 0.35V 1 Output 3A 15-UFBGA, WLCSP
