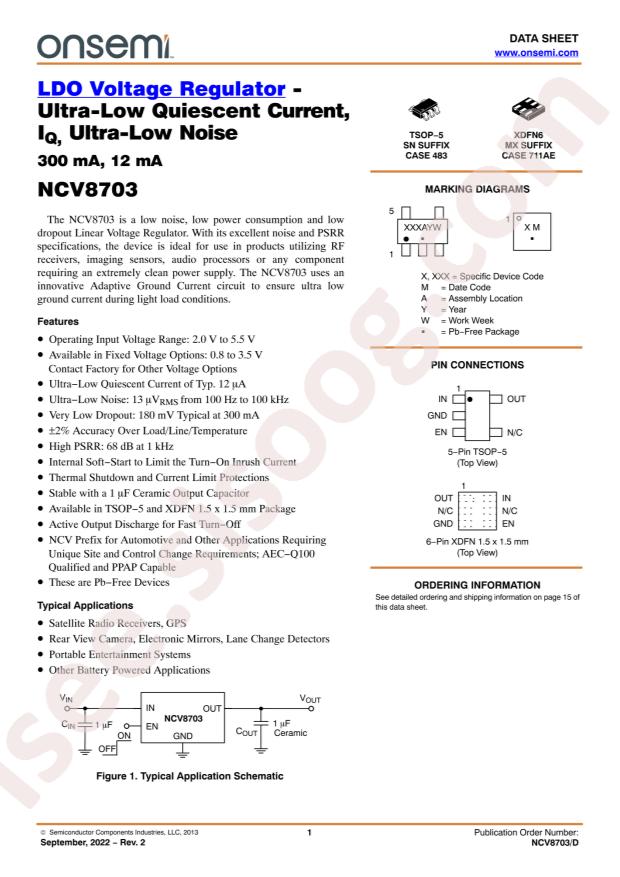

NCV8703MX33TCG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV8703MX33TCG
|
|
حجم فایل
|
85.982
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Feature:
Overcurrent Protection;Thermal Protection;Soft start;欠压锁定(UVLO)
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCV8703MX33TCG
-
Output Current:
300mA
-
Output Voltage:
3.3V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
20uA
-
Package:
DFN-6(1.5x1.5)
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Current - Output:
300mA
-
Current - Quiescent (Iq):
20µA
-
PSRR:
-
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
-
Mounting Type:
Surface Mount
-
Package / Case:
6-XFDFN
-
Supplier Device Package:
6-XDFN (1.5x1.5)
-
Base Part Number:
NCV8703
-
detail:
Linear Voltage Regulator IC 1 Output 300mA 6-XDFN (1.5x1.5)
