NCP1399ANDR2G دیتاشیت

مشخصات دیتاشیت

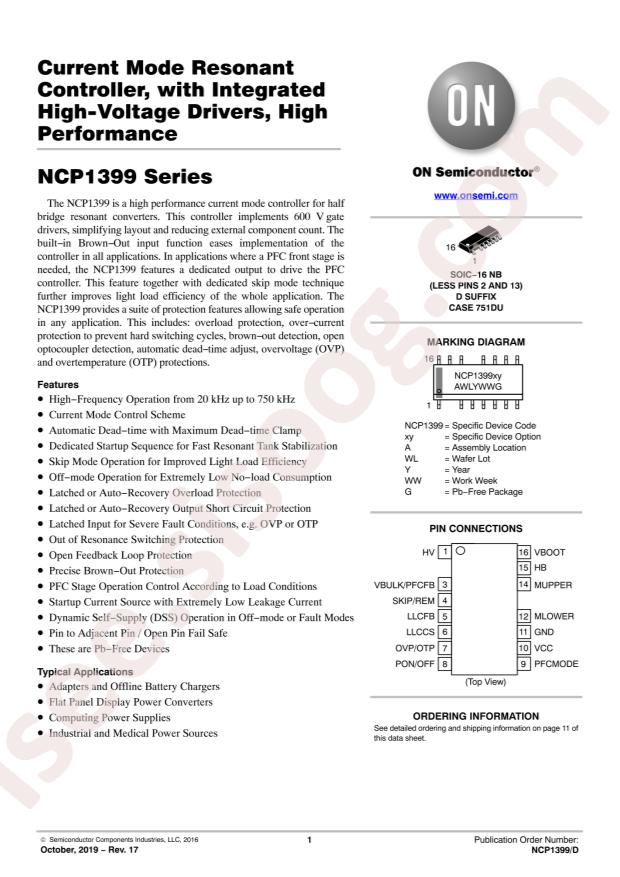

مشاهده دیتاشیت NCP1399ANDR2G	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Power Modules
Datasheet: onsemi NCP1399ANDR2G
Package: SOIC-16-EP
Manufacturer: onsemi
Series: NCP1399
Packaging: Tape & Reel (TR)
Part Status: Active
Output Isolation: Isolated
Internal Switch(s): No
Voltage - Breakdown: -
Topology: Half-Bridge
Voltage - Start Up: 15.8V
Voltage - Supply (Vcc/Vdd): 60V
Duty Cycle: 50%
Frequency - Switching: 20kHz ~ 750kHz
Fault Protection: Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features: EN, Soft Start, Sync
Operating Temperature: -55°C ~ 150°C (TJ)
Package / Case: 16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package: 16-SOIC
Mounting Type: Surface Mount
Base Part Number: NCP1399
detail: Converter Offline Half-Bridge Topology 20kHz ~ 750kHz 16-SOIC
