FCPF250N65S3L1 دیتاشیت

FCPF250N65S3L1

مشخصات دیتاشیت

نام دیتاشیت FCPF250N65S3L1
حجم فایل 68.596 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت FCPF250N65S3L1

دانلود دیتاشیت

سایر مستندات

FCPF250N65S3L1 10 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FCPF250N65S3L1
  • Power Dissipation (Pd): 31W
  • Drain Source Voltage (Vdss): 650V
  • Continuous Drain Current (Id): 12A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@1.2mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 250mΩ@10V,6A

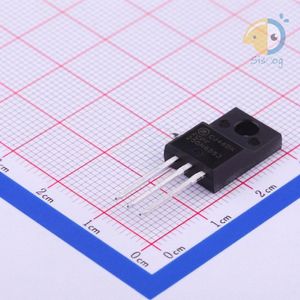

  • Package: TO-220
  • Manufacturer: onsemi
  • Series: SuperFET® III
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 250mOhm @ 6A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 1.2mA
  • Gate Charge (Qg) (Max) @ Vgs: 24nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1010pF @ 400V
  • FET Feature: -
  • Power Dissipation (Max): 31W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220F-3
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: FCPF250
  • detail: N-Channel 650V 12A (Tc) 31W (Tc) Through Hole TO-220F-3
