دیتاشیت NTSB20120CT-1G
مشخصات دیتاشیت
| نام دیتاشیت |

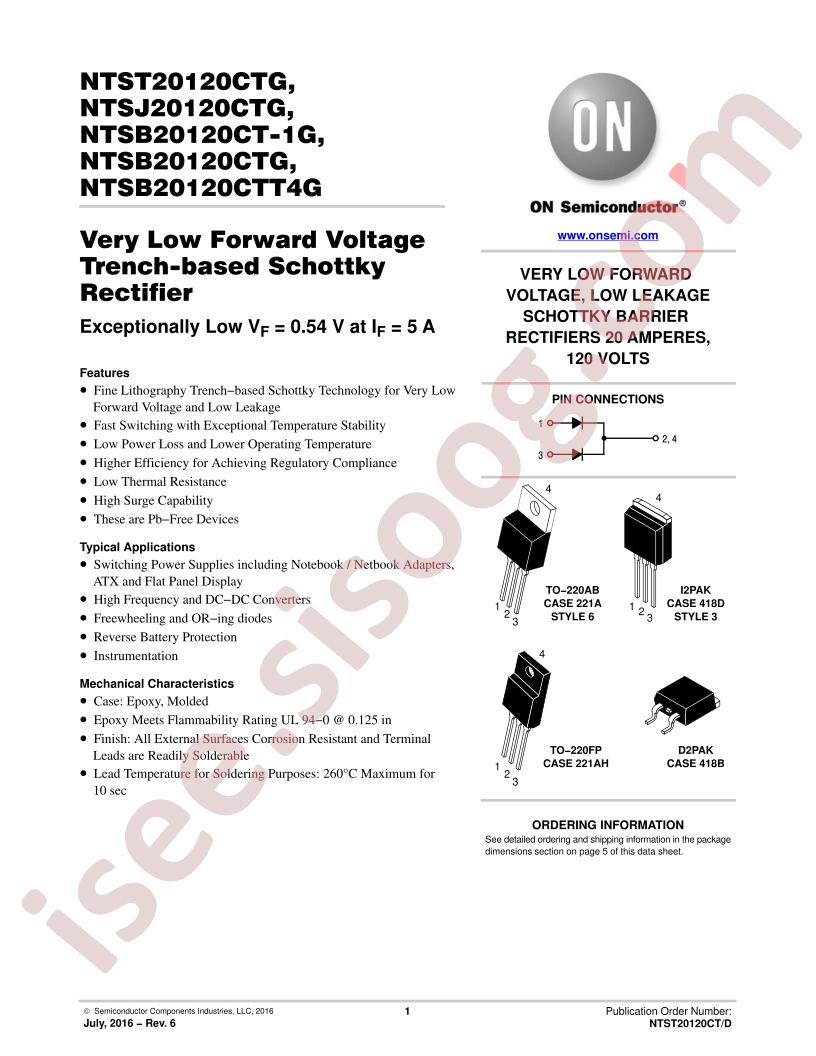

NTSx20120CT
|
| حجم فایل |
91.812
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi NTSB20120CT-1G
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
120V
-
Forward Voltage (Vf@If):
900mV@10A
-
Reverse Leakage Current (Ir):
12uA@90V
-
Average Rectified Current (Io):
10A
-
Package:
I2PAK
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
120V
-
Current - Average Rectified (Io) (per Diode):
10A
-
Voltage - Forward (Vf) (Max) @ If:
1.1V @ 10A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
700µA @ 120V
-
Operating Temperature - Junction:
-40°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-262-3 Long Leads, I²Pak, TO-262AA
-
Supplier Device Package:
I2PAK (TO-262)
-
Base Part Number:
NTSB20
-
detail:
Diode Array 1 Pair Common Cathode Schottky 120V 10A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA
