FDWS9520L-F085 دیتاشیت

مشخصات دیتاشیت

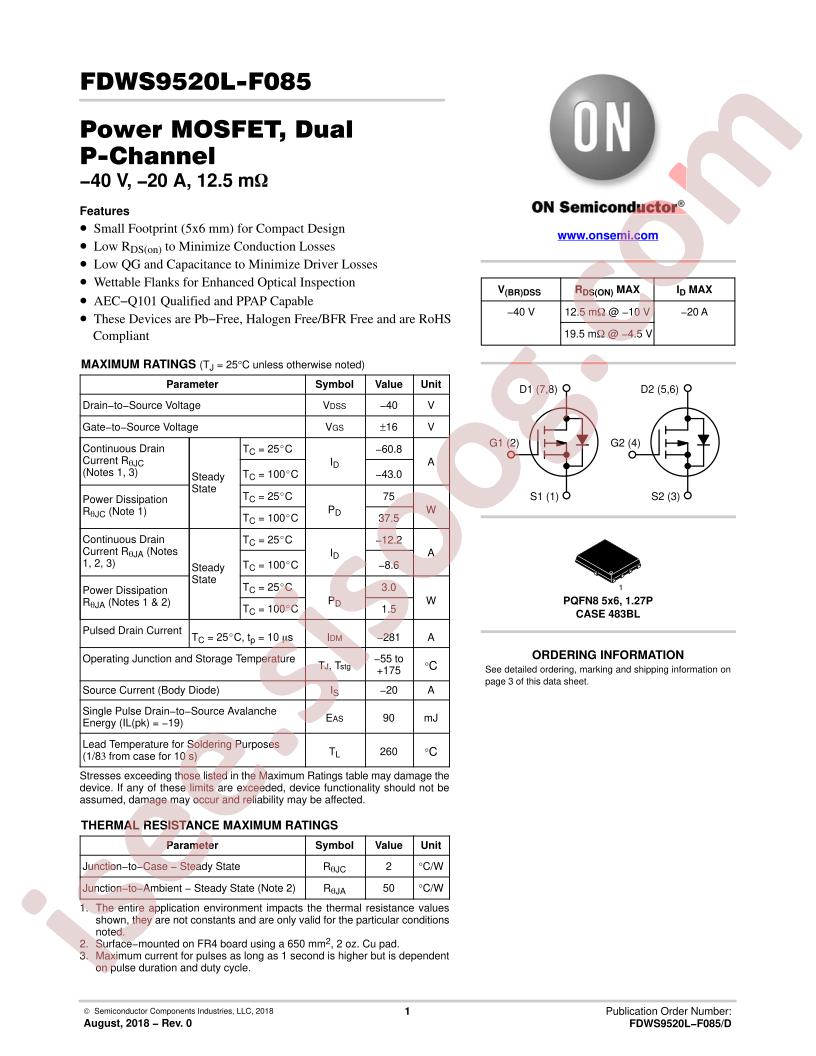

مشاهده دیتاشیت FDWS9520L-F085	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: Automotive, AEC-Q101
Packaging: Tape & Reel (TR)
Part Status: Active
FET Type: 2 P-Channel (Dual)
FET Feature: Standard
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 60.8A (Tc)
Rds On (Max) @ Id, Vgs: 12.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 2370pF @ 20V
Power - Max: 75W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerTDFN
Supplier Device Package: 8-PQFN (5x6)
Base Part Number: FDWS9
detail: Mosfet Array 2 P-Channel (Dual) 40V 60.8A (Tc) 75W (Tc) Surface Mount 8-PQFN (5x6)
