دیتاشیت FCPF190N60-F152

FCPF190N60_F152

مشخصات دیتاشیت

نام دیتاشیت FCPF190N60_F152
حجم فایل 1661.987 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت FCPF190N60_F152

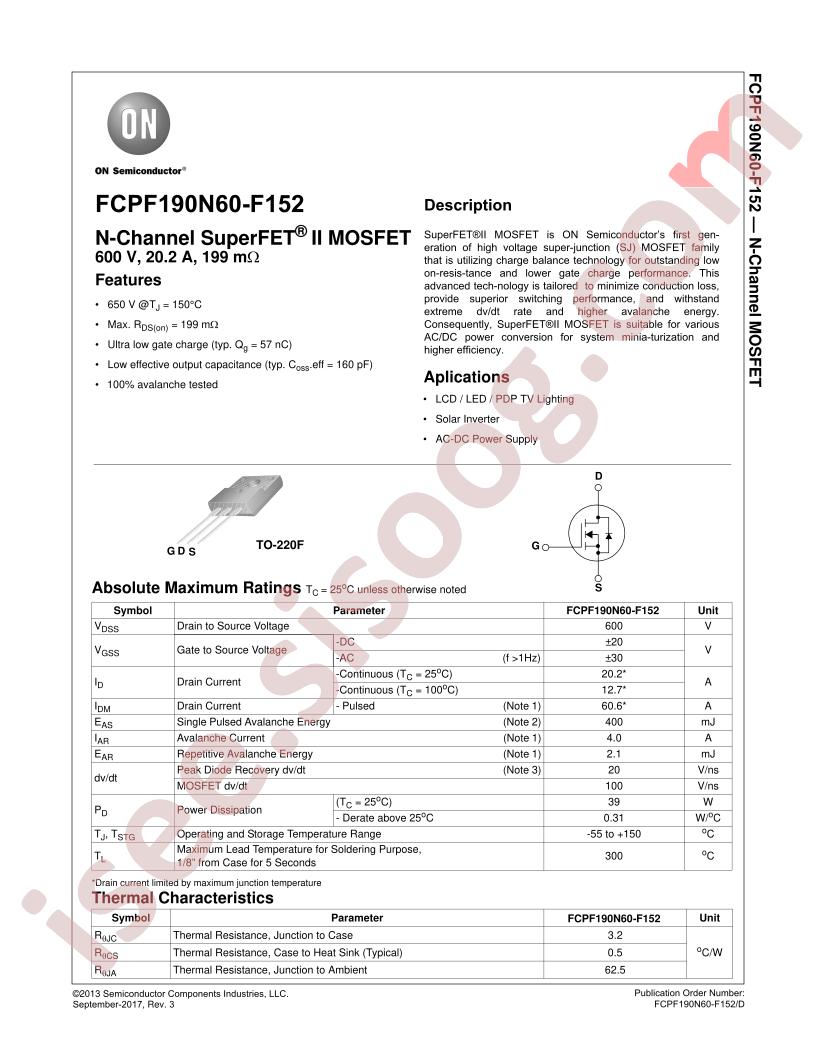

FCPF190N60_F152 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: SuperFET® II
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 20.2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 199mOhm @ 10A, 10V
  • Vgs(th) (Max) @ Id: 3.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 74nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2950pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 39W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220F
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: FCPF190
  • detail: N-Channel 600V 20.2A (Tc) 39W (Tc) Through Hole TO-220F
