دیتاشیت FGD3440G2-F085V
مشخصات دیتاشیت
| نام دیتاشیت | FGD3440G2-F085V |
|---|---|
| حجم فایل | 885.492 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت FGD3440G2-F085V |

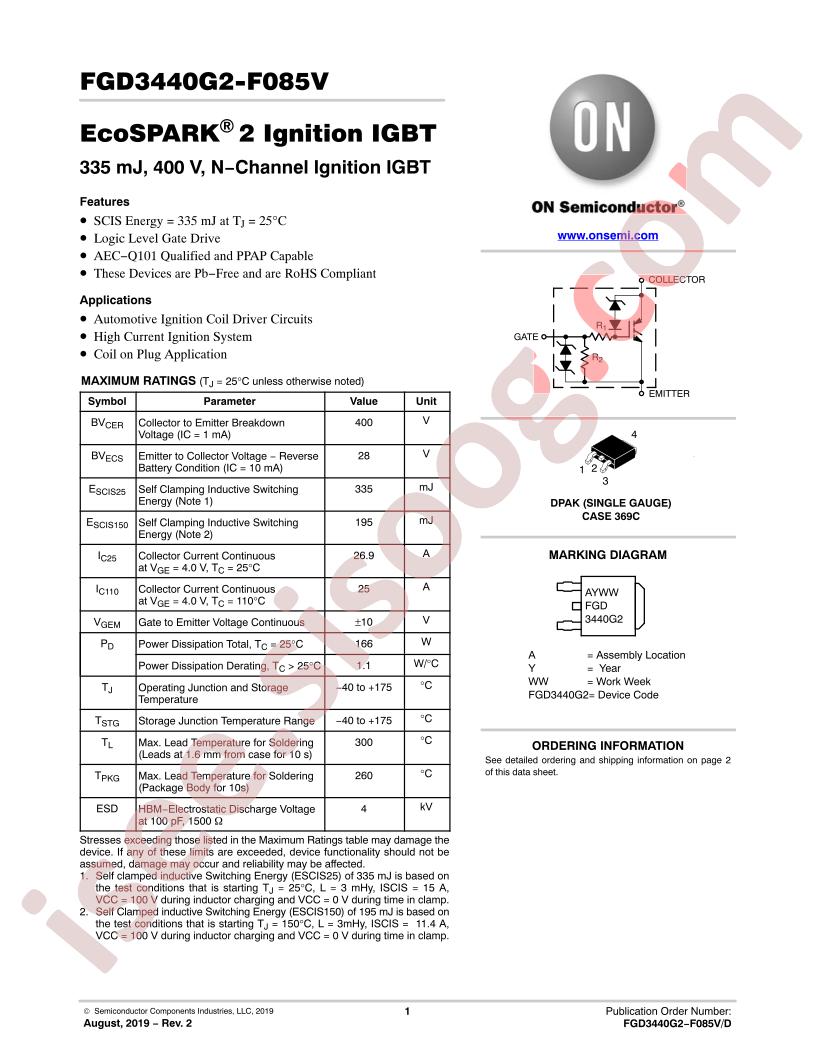

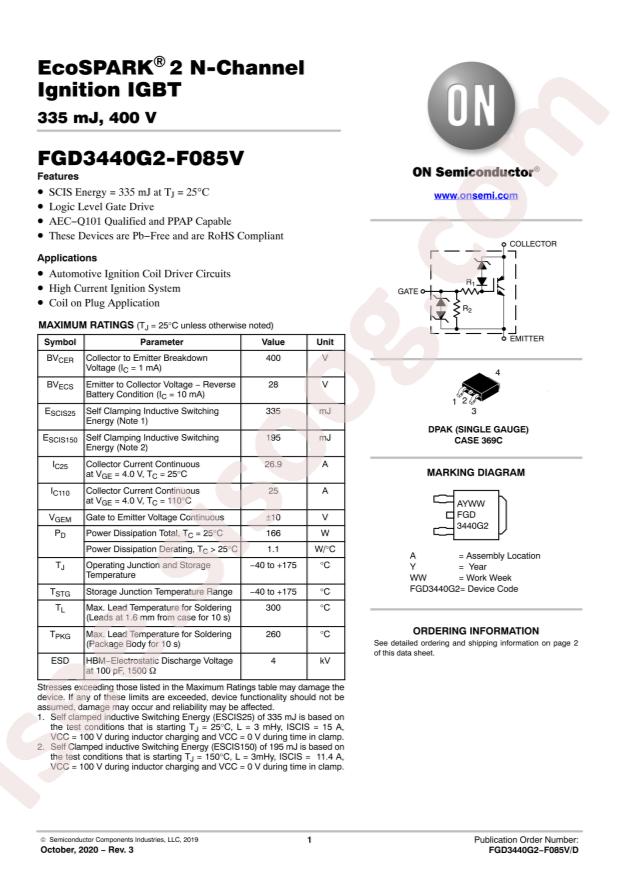

FGD3440G2-F085V Datasheet |
|---|
مشخصات
- RoHS: true
- Type: -
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: onsemi FGD3440G2-F085V
- Operating Temperature: 40°C~+175°C@(Tj)
- Collector Current (Ic): 26.9A
- Power Dissipation (Pd): 166W
- Input Capacitance (Cies@Vce): -
- Turn?on Switching Loss (Eon): -
- Total Gate Charge (Qg@Ic,Vge): 24nC
- Collector-Emitter Breakdown Voltage (Vces): 400V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): 1.2V@4V,6A
- Package: TO-252
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101, EcoSPARK®
- Packaging: Tape & Reel (TR)
- Part Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 400V
- Current - Collector (Ic) (Max): 26.9A
- Vce(on) (Max) @ Vge, Ic: 1.2V @ 4V, 6A
- Power - Max: 166W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: 24nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: DPAK
- Base Part Number: FGD3
- detail: IGBT 400V 26.9A 166W Surface Mount DPAK
