NVATS5A114PLZT4G دیتاشیت

NVATS5A114PLZT4G

مشخصات دیتاشیت

نام دیتاشیت NVATS5A114PLZT4G
حجم فایل 71.678 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

مشاهده دیتاشیت NVATS5A114PLZT4G

دانلود دیتاشیت

سایر مستندات

NVATS5A114PLZ 6 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

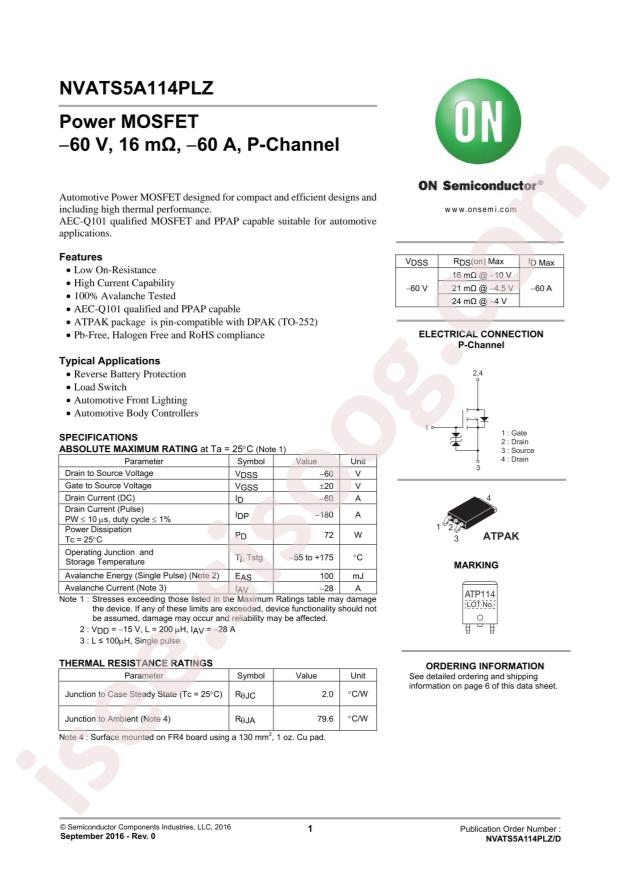

  • Datasheet: onsemi NVATS5A114PLZT4G
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 72W
  • Total Gate Charge (Qg@Vgs): 92nC@10V
  • Drain Source Voltage (Vdss): 60V
  • Input Capacitance (Ciss@Vds): 4nF@20V
  • Continuous Drain Current (Id): 60A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.6V@1mA
  • Reverse Transfer Capacitance (Crss@Vds): 315pF@20V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 12mΩ@10V,28A
  • Package: -
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 60A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4V, 10V
  • Rds On (Max) @ Id, Vgs: 16mOhm @ 28A, 10V
  • Vgs(th) (Max) @ Id: 2.6V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 92nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 4000pF @ 20V
  • FET Feature: -
  • Power Dissipation (Max): 72W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: ATPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: NVATS5
  • detail: P-Channel 60V 60A (Ta) 72W (Tc) Surface Mount ATPAK
