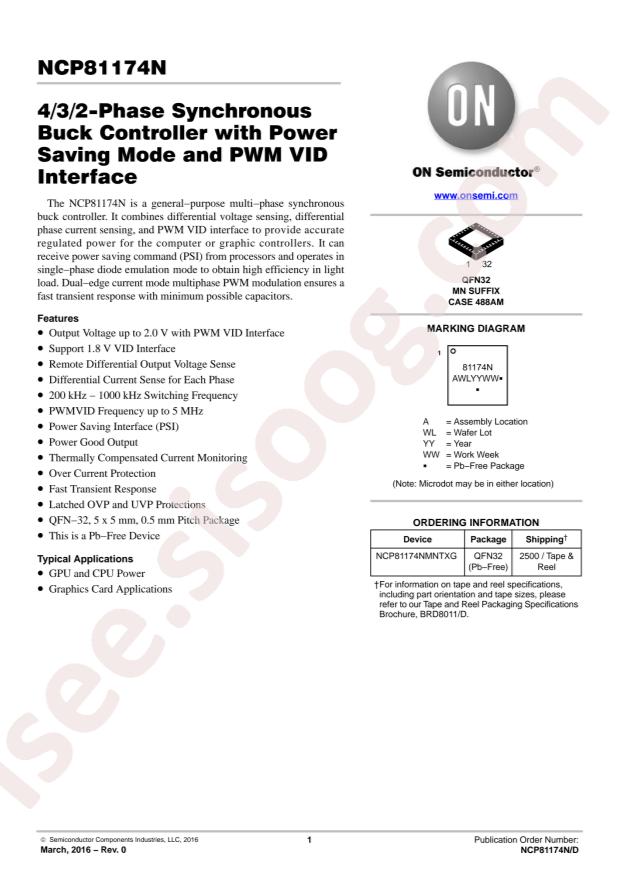

NCP81174NMNTXG دیتاشیت

NCP81174NMNTXG

مشخصات دیتاشیت

نام دیتاشیت NCP81174NMNTXG
حجم فایل 71.606 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت NCP81174NMNTXG

دانلود دیتاشیت

سایر مستندات

NCP81174N 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Function: Step-down type
  • Topology: Step-down
  • Datasheet: onsemi NCP81174NMNTXG
  • Input Voltage: 5.5V
  • Duty Cycle (Max): -
  • Number of Outputs: 4
  • Switching Frequency: 1MHz
  • Operating Temperature: 0°C~+100°C@(TA)
  • Synchronous Rectification: NO
  • Package: QFN-32(5x5)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Output Type: PWM Signal
  • Output Configuration: Positive
  • Output Phases: 4
  • Voltage - Supply (Vcc/Vdd): 5.5V
  • Frequency - Switching: 200kHz ~ 1MHz
  • Synchronous Rectifier: No
  • Clock Sync: No
  • Serial Interfaces: PSI
  • Control Features: Current Limit, Enable, Frequency Control, Power Good
  • Package / Case: 32-VFQFN Exposed Pad
  • Supplier Device Package: 32-QFN (5x5)
  • Base Part Number: NCP81174
  • detail: Buck Regulator Positive Output Step-Down PSI DC-DC Controller IC 32-QFN (5x5)
