دیتاشیت FAN3225TMX-F085

FAN3223-25

مشخصات دیتاشیت

نام دیتاشیت FAN3223-25
حجم فایل 2015.331 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

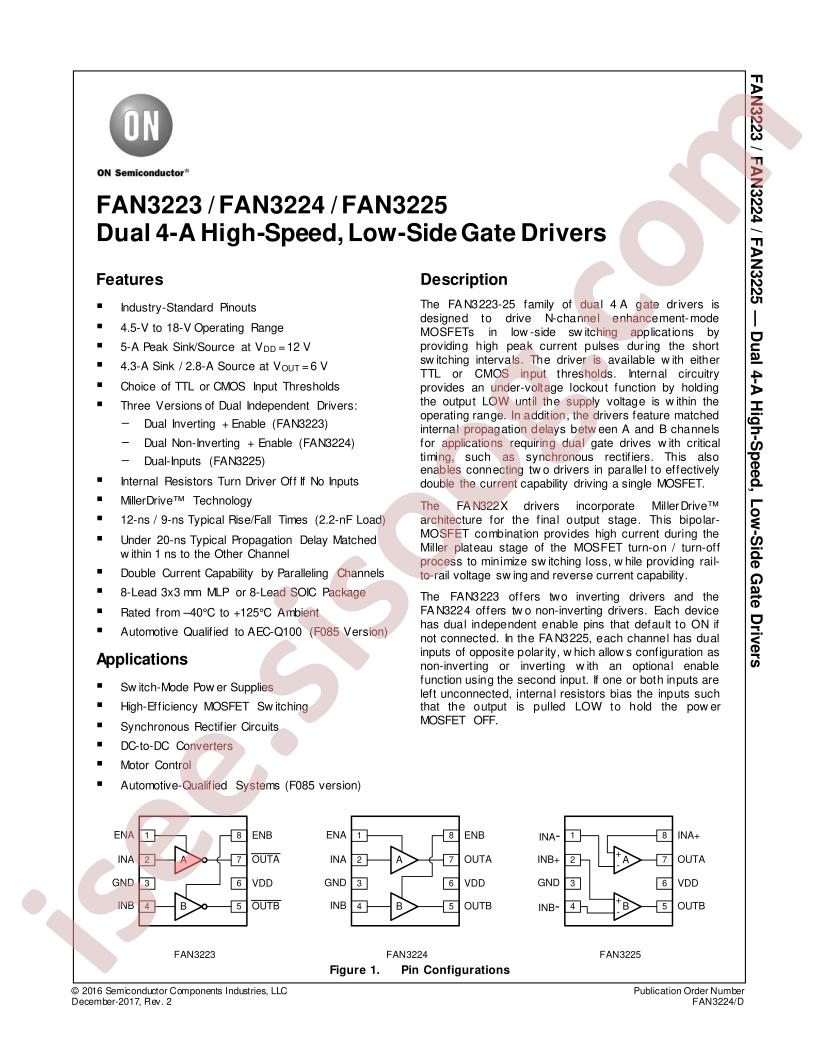

دانلود دیتاشیت FAN3223-25

FAN3223-25 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: Automotive, AEC-Q100
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Driven Configuration: Low-Side
  • Channel Type: Independent
  • Number of Drivers: 2
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current - Peak Output (Source, Sink): 5A, 5A
  • Input Type: Inverting, Non-Inverting
  • Rise / Fall Time (Typ): 12ns, 9ns
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount

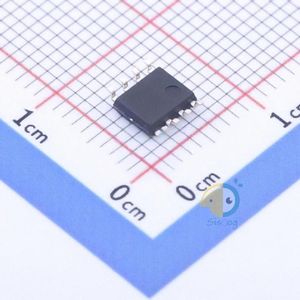

  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: FAN3225
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 8-SOIC
