NCP81075MNTXG دیتاشیت

NCP81075MNTXG

مشخصات دیتاشیت

نام دیتاشیت NCP81075MNTXG
حجم فایل 90.746 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

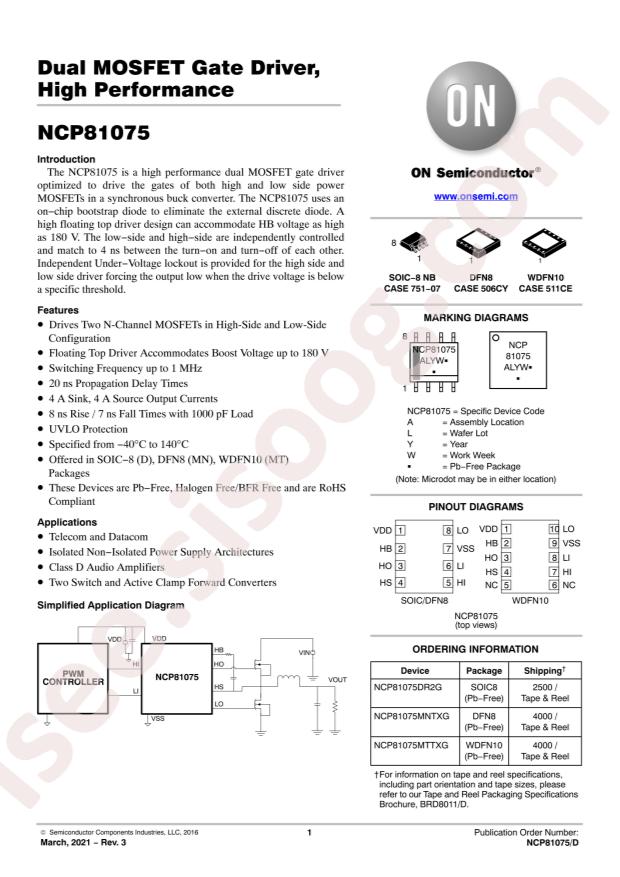

مشاهده دیتاشیت NCP81075MNTXG

دانلود دیتاشیت

سایر مستندات

NCP81075 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP81075MNTXG
  • Fall Time: 7ns
  • Load Type: MOSFET
  • Rise Time: 8ns
  • Supply Voltage: 8.5V~20V
  • Number of Drivers: 2
  • Driven Configuration: High Side;Low Side
  • Operating Temperature: -40°C~+140°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: DFN-8-EP(4x4)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 8.5V ~ 20V
  • Logic Voltage - VIL, VIH: 0.8V, 2.7V
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 200V
  • Rise / Fall Time (Typ): 8ns, 7ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-VDFN Exposed Pad
  • Supplier Device Package: 8-DFN (4x4)
  • Base Part Number: NCP81075
  • detail: High-Side or Low-Side Gate Driver IC Non-Inverting 8-DFN (4x4)
