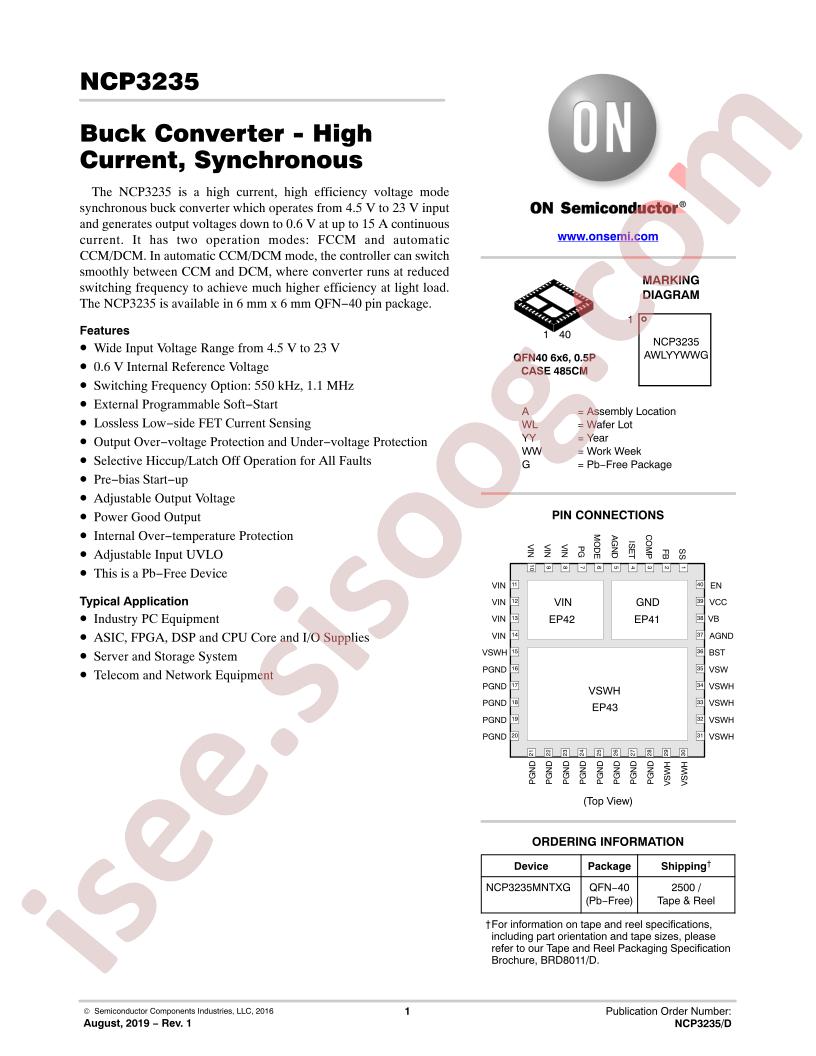

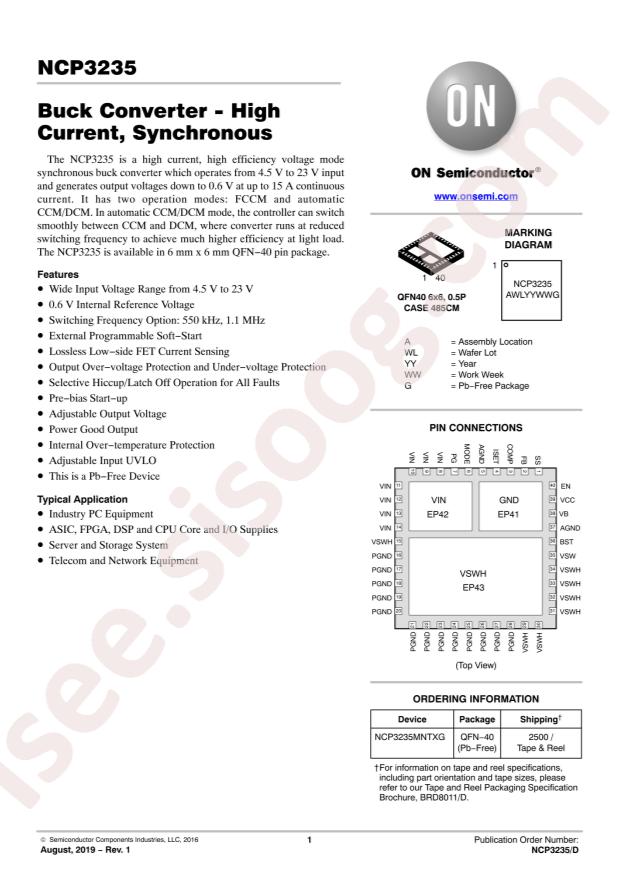

دیتاشیت NCP3235MNTXG
مشخصات دیتاشیت
| نام دیتاشیت |
NCP3235
|
| حجم فایل |
500.133
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
onsemi NCP3235MNTXG
-
Output Type:
Adjustable
-
Input Voltage:
4.5V~21V
-
Output Voltage:
0.6V
-
Number of Outputs:
1
-
Output Current (Max):
15A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
QFN-40-EP(6x6)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Voltage - Input (Min):
4.5V
-
Voltage - Input (Max):
21V
-
Voltage - Output (Min/Fixed):
0.6V
-
Voltage - Output (Max):
-
-
Current - Output:
15A
-
Synchronous Rectifier:
Yes
-
Mounting Type:
Surface Mount
-
Package / Case:
40-VFQFN Exposed Pad
-
Supplier Device Package:
40-QFN (6x6)
-
Base Part Number:
NCP3235
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 15A 40-VFQFN Exposed Pad
