NCV885300D1R2G دیتاشیت

NCV885300D1R2G

مشخصات دیتاشیت

نام دیتاشیت NCV885300D1R2G
حجم فایل 78.326 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

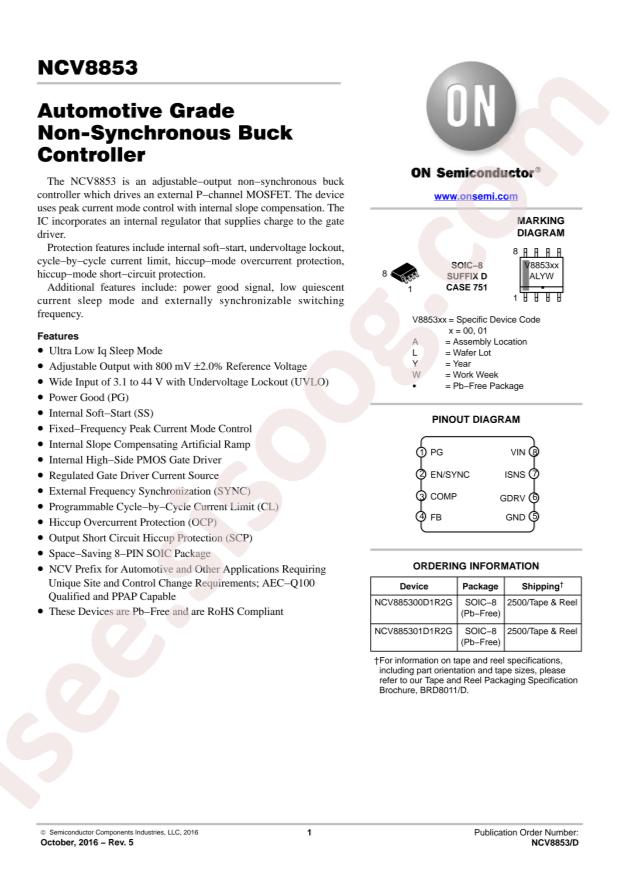

مشاهده دیتاشیت NCV885300D1R2G

دانلود دیتاشیت

سایر مستندات

NCV8853 12 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Function: Step-down type
  • Topology: Step-down
  • Datasheet: onsemi NCV885300D1R2G
  • Input Voltage: 3.1V~44V
  • Duty Cycle (Max): 93%
  • Number of Outputs: 1
  • Switching Frequency: 340kHz
  • Operating Temperature: -40°C~+150°C@(TJ)
  • Synchronous Rectification: NO
  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Packaging: Tape & Reel (TR)
  • Part Status: Not For New Designs
  • Output Type: Transistor Driver
  • Output Configuration: Positive
  • Output Phases: 1
  • Voltage - Supply (Vcc/Vdd): 3.1V ~ 44V
  • Frequency - Switching: 340kHz
  • Synchronous Rectifier: No
  • Clock Sync: Yes
  • Serial Interfaces: -
  • Control Features: Enable, Power Good
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: NCV8853
  • detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-SOIC
