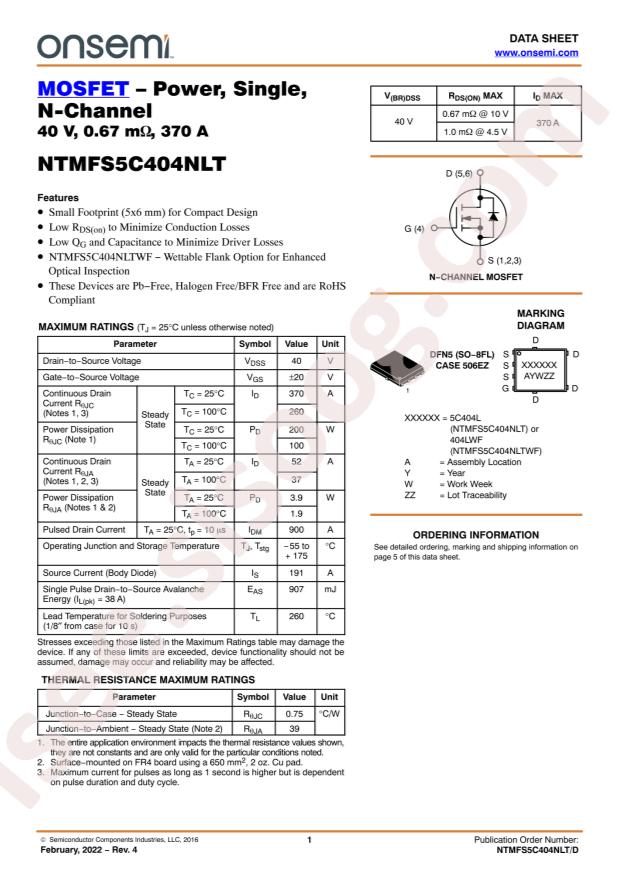

- دیتاشیت NTMFS5C404NLTWFT3G
NTMFS5C404NLTWFT3G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NTMFS5C404NLTWFT3G |
|---|---|
| حجم فایل | 93.127 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت NTMFS5C404NLTWFT3G |
دانلود دیتاشیت |
|---|
سایر مستندات
NTMFS5C404NLT 6 pages
مشخصات فنی
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NTMFS5C404NLTWFT3G
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 200W
- Total Gate Charge (Qg@Vgs): 81nC@4.5V
- Drain Source Voltage (Vdss): 40V
- Input Capacitance (Ciss@Vds): 12.168nF@25V
- Continuous Drain Current (Id): 370A
- Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
- Reverse Transfer Capacitance (Crss@Vds): 79.8pF@25V
- Drain Source On Resistance (RDS(on)@Vgs,Id): 520mΩ@10V,50A
- Package: DFN-5(5x6)
- Manufacturer: onsemi
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40V
- Current - Continuous Drain (Id) @ 25°C: -
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.75mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 181nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 12168pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 3.9W (Ta), 200W (Tc)
- Mounting Type: Surface Mount
- Supplier Device Package: 5-DFN (5x6) (8-SOFL)
- Package / Case: 8-PowerTDFN
- Base Part Number: NTMFS5
- detail: N-Channel 40V 3.9W (Ta), 200W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
