دیتاشیت FCP16N60N-F102

FCP16N60N(T)

مشخصات دیتاشیت

نام دیتاشیت FCP16N60N(T)
حجم فایل 770.974 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت FCP16N60N(T)

FCP16N60N(T) Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 16A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 199mOhm @ 8A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 52.3nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 2170pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 134.4W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole

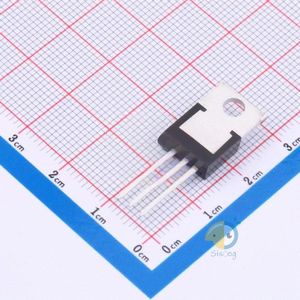

  • Supplier Device Package: TO-220F
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: FCP16
  • detail: N-Channel 600V 16A (Tc) 134.4W (Tc) Through Hole TO-220F
