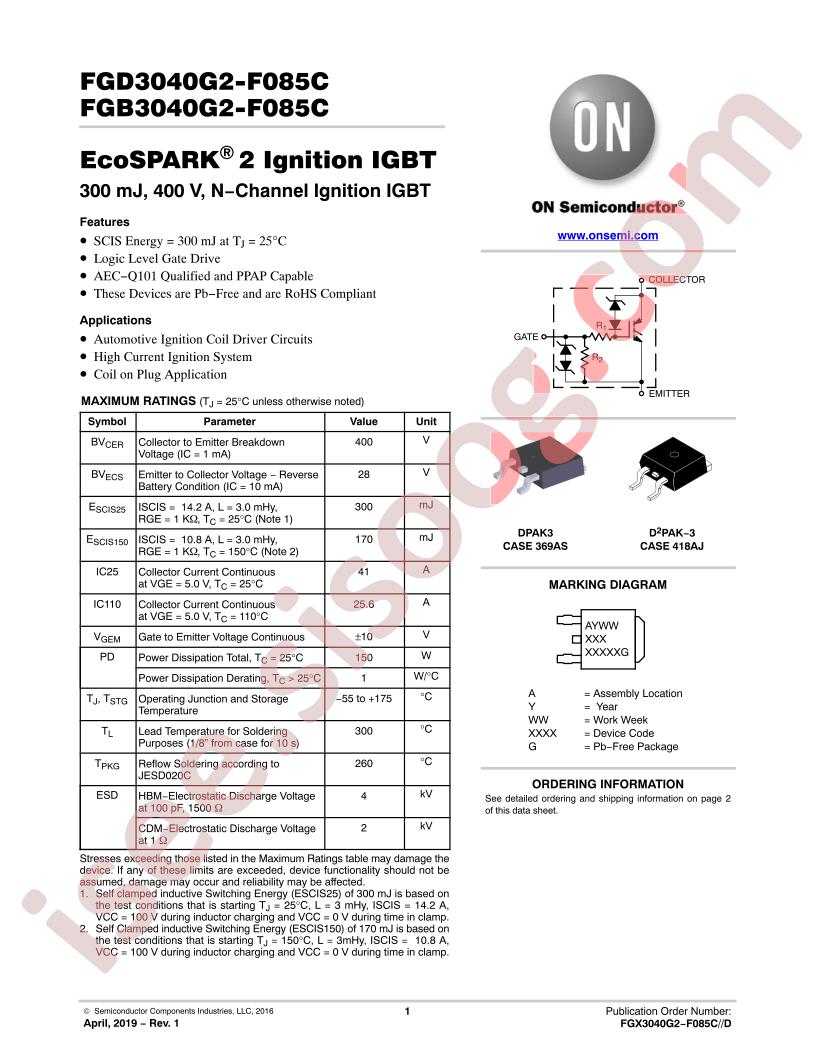

دیتاشیت FGB3040G2-F085C
مشخصات دیتاشیت
| نام دیتاشیت | FGx3040G2-F085C |
|---|---|
| حجم فایل | 817.32 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت FGx3040G2-F085C |

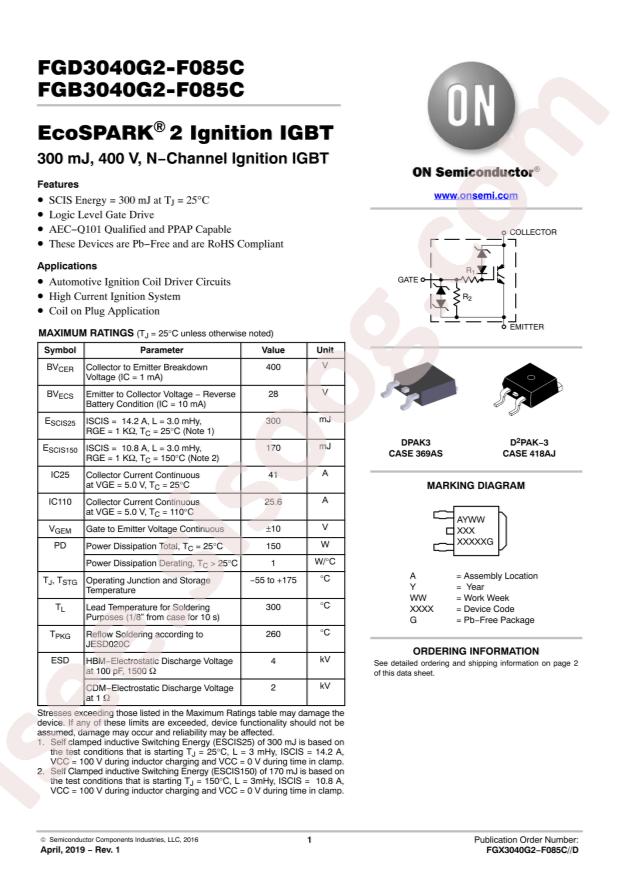

FGx3040G2-F085C Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: Automotive, AEC-Q101, EcoSPARK®
- Packaging: Tape & Reel (TR)
- Part Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 400V
- Current - Collector (Ic) (Max): 41A
- Vce(on) (Max) @ Vge, Ic: 1.25V @ 4V, 6A
- Power - Max: 150W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: 21nC
- Td (on/off) @ 25°C: 900ns/4.8µs
- Test Condition: 5V, 470Ohm
- Reverse Recovery Time (trr): 1.9µs
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK-3 (TO-263-3)
- Base Part Number: FGB3
- detail: IGBT 400V 41A 150W Surface Mount D²PAK-3 (TO-263-3)
