FCB125N65S3 دیتاشیت

FCB125N65S3

مشخصات دیتاشیت

نام دیتاشیت FCB125N65S3
حجم فایل 64.184 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

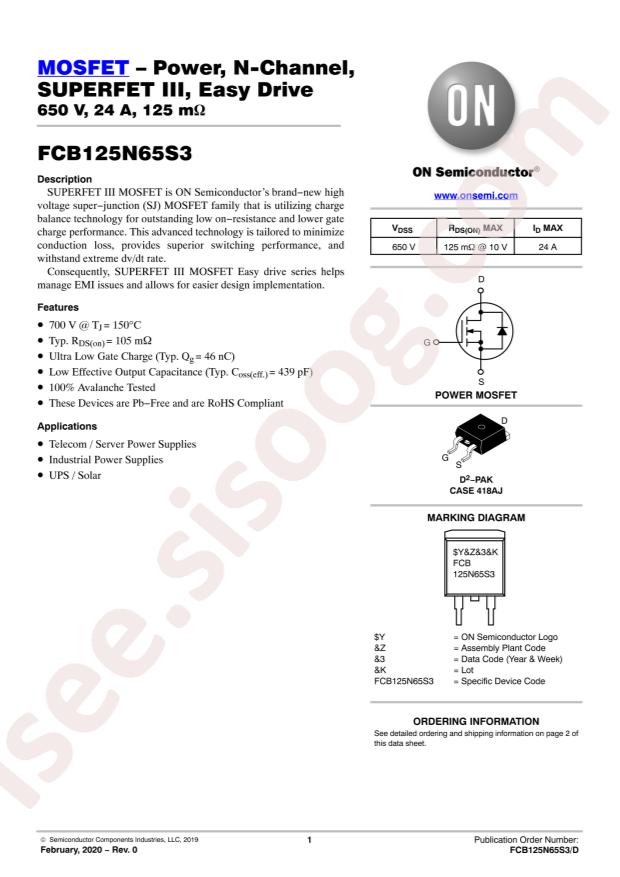

مشاهده دیتاشیت FCB125N65S3

دانلود دیتاشیت

سایر مستندات

FCB125N65S3 9 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FCB125N65S3
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 181W
  • Total Gate Charge (Qg@Vgs): 46nC@10V
  • Drain Source Voltage (Vdss): 650V
  • Input Capacitance (Ciss@Vds): 1.94nF@400V
  • Continuous Drain Current (Id): 24A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@0.59mA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 105mΩ@10V,12A
  • Package: D2PAK
  • Manufacturer: onsemi
  • Series: SuperFET® III
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 125mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 590µA
  • Gate Charge (Qg) (Max) @ Vgs: 46nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1940pF @ 400V
  • FET Feature: -
  • Power Dissipation (Max): 181W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: TO-263 (D2Pak)
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • detail: N-Channel 650V 24A (Tc) 181W (Tc) Surface Mount TO-263 (D2Pak)
