NCP303151MNTWG دیتاشیت

NCP303151MNTWG

مشخصات دیتاشیت

نام دیتاشیت NCP303151MNTWG
حجم فایل 69.438 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

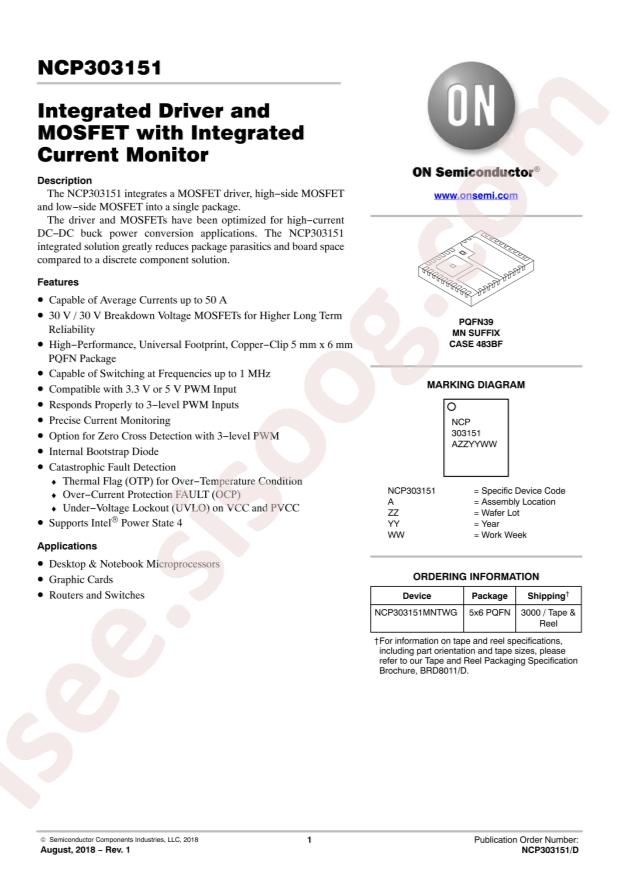

مشاهده دیتاشیت NCP303151MNTWG

دانلود دیتاشیت

سایر مستندات

NCP303151 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP303151MNTWG
  • Fall Time: 26ns
  • Load Type: MOSFET
  • Rise Time: 17ns
  • Supply Voltage: 4.5V~5.5V
  • Number of Drivers: 2
  • Driven Configuration: High Side;Low Side
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 100mA
  • Peak Output Current(source): 100mA
  • Package: PQFN-39(5x6)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 5.5V
  • Logic Voltage - VIL, VIH: 0.65V, 2.7V
  • Current - Peak Output (Source, Sink): 100mA, 100mA
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 30V
  • Rise / Fall Time (Typ): 17ns, 26ns
  • Mounting Type: Surface Mount
  • Package / Case: 39-PowerVFQFN
  • Supplier Device Package: 39-PQFN (5x6)
  • Base Part Number: NCP303
  • detail: High-Side or Low-Side Gate Driver IC Non-Inverting 39-PQFN (5x6)
