FCP165N65S3R0 دیتاشیت

FCP165N65S3R0

مشخصات دیتاشیت

نام دیتاشیت FCP165N65S3R0
حجم فایل 68.291 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

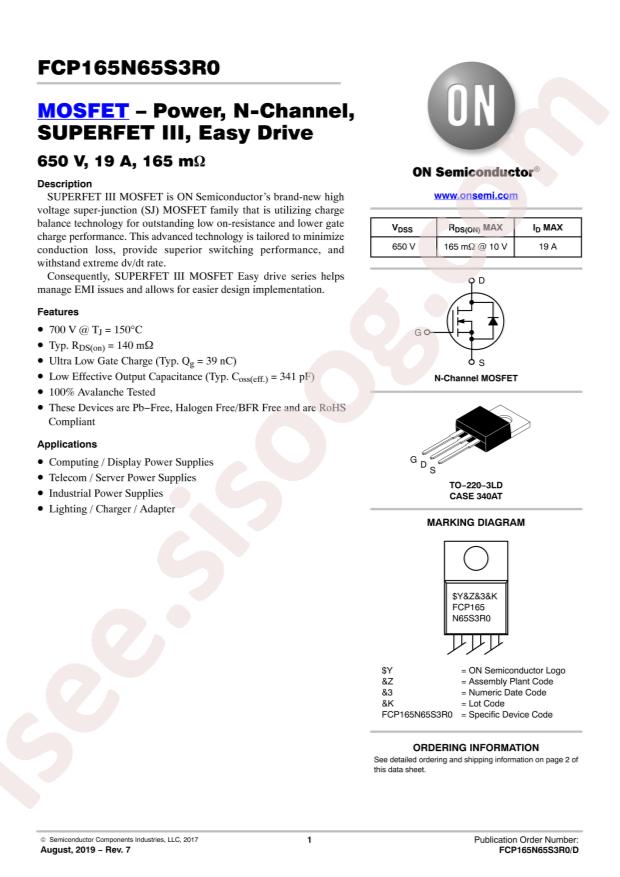

مشاهده دیتاشیت FCP165N65S3R0

دانلود دیتاشیت

سایر مستندات

FCP165N65S3R0 10 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FCP165N65S3R0
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 154W
  • Total Gate Charge (Qg@Vgs): 39nC@10V
  • Drain Source Voltage (Vdss): 650V
  • Input Capacitance (Ciss@Vds): 1500pF@400V
  • Continuous Drain Current (Id): 19A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@1.9mA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 165mΩ@9.5A,10V
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: SuperFET® III
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 19A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 165mOhm @ 9.5A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 1.9mA
  • Gate Charge (Qg) (Max) @ Vgs: 39nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1500pF @ 400V
  • FET Feature: -
  • Power Dissipation (Max): 154W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-3
  • Package / Case: TO-220-3
  • Base Part Number: FCP165
  • detail: N-Channel 650V 19A (Tc) 154W (Tc) Through Hole TO-220-3
