NTPF150N65S3HF دیتاشیت

NTPF150N65S3HF

مشخصات دیتاشیت

نام دیتاشیت NTPF150N65S3HF
حجم فایل 71.283 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

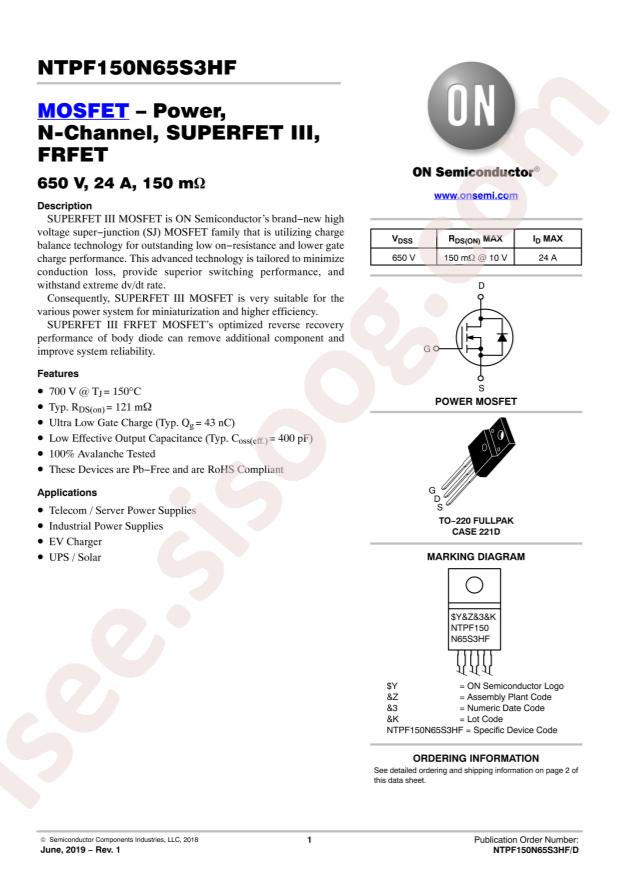

مشاهده دیتاشیت NTPF150N65S3HF

دانلود دیتاشیت

سایر مستندات

NTPF150N65S3HF 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NTPF150N65S3HF
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 192W
  • Total Gate Charge (Qg@Vgs): 43nC@10V
  • Drain Source Voltage (Vdss): 650V
  • Input Capacitance (Ciss@Vds): 1985pF@400V
  • Continuous Drain Current (Id): 24A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@540uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 150mΩ@12A,10V
  • Package: TO-220
  • Manufacturer: onsemi
  • Series: FRFET®, SuperFET® III
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 150mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 540µA
  • Gate Charge (Qg) (Max) @ Vgs: 43nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1985pF @ 400V
  • FET Feature: -
  • Power Dissipation (Max): 192W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: NTPF15
  • detail: N-Channel 650V 24A (Tc) 192W (Tc) Through Hole TO-220FP
