FQA9N90_F109 Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

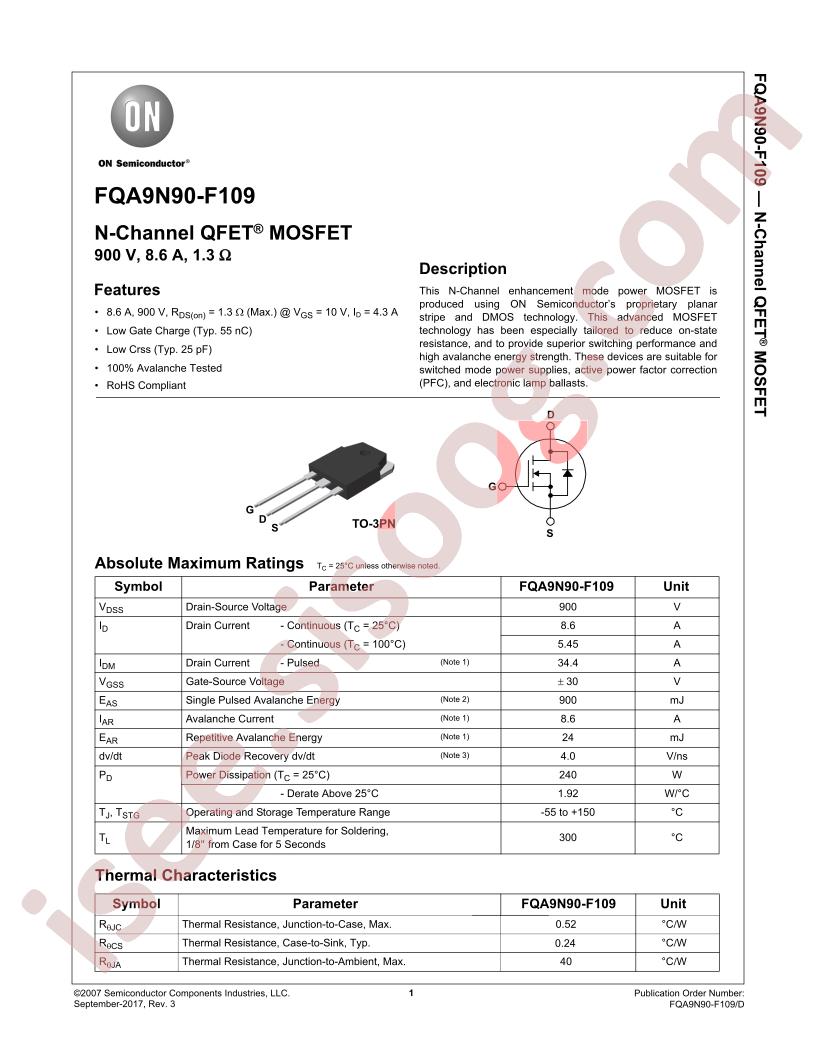

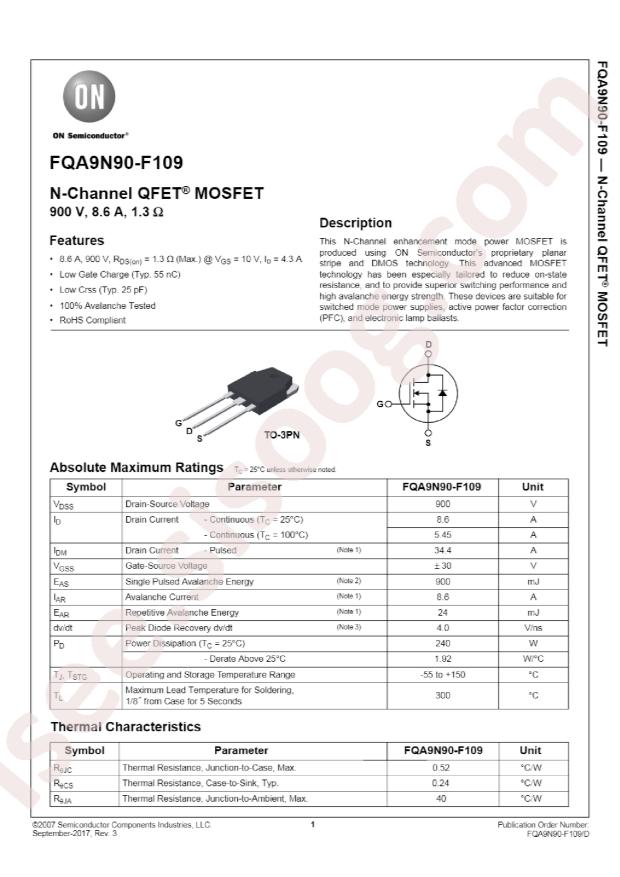

  • Datasheet: onsemi FQA9N90-F109
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 240W
  • Total Gate Charge (Qg@Vgs): 72nC@10V
  • Drain Source Voltage (Vdss): 900V
  • Input Capacitance (Ciss@Vds): 2700pF@25V
  • Continuous Drain Current (Id): 8.6A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 25pF@25V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1Ω@10V,4.3A
  • Package: TO-3P
  • Manufacturer: onsemi
  • Series: QFET®
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 900V
  • Current - Continuous Drain (Id) @ 25°C: 8.6A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.3Ohm @ 4.3A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 72nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 2700pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 240W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-3PN
  • Package / Case: TO-3P-3, SC-65-3
  • Base Part Number: FQA9
  • detail: N-Channel 900V 8.6A (Tc) 240W (Tc) Through Hole TO-3PN
