NVMTS1D2N08H دیتاشیت

NVMTS1D2N08H

مشخصات دیتاشیت

نام دیتاشیت NVMTS1D2N08H
حجم فایل 91.562 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

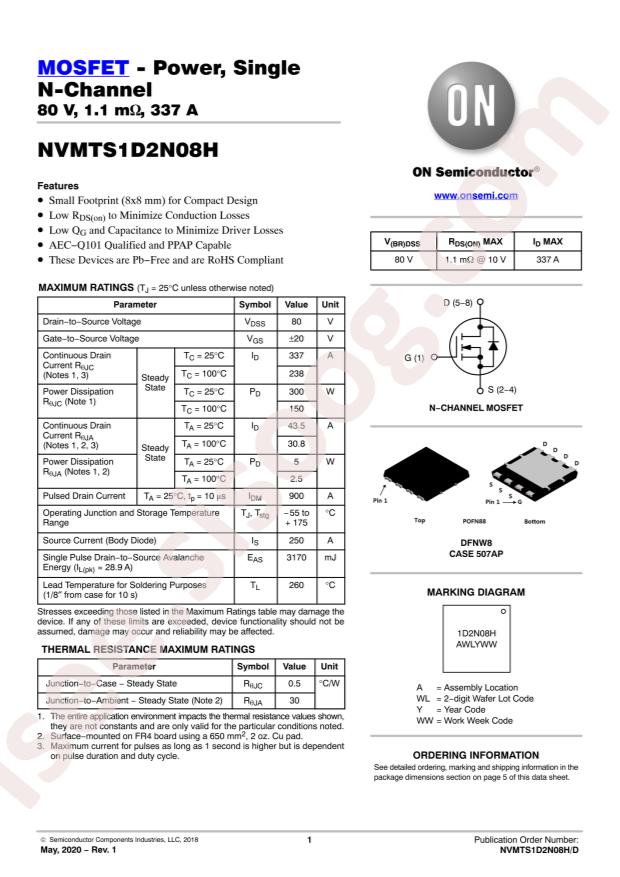

مشاهده دیتاشیت NVMTS1D2N08H

دانلود دیتاشیت

سایر مستندات

NVMTS1D2N08H 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NVMTS1D2N08H
  • Package: DFNW-8(8.4x8.3)
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 80V
  • Current - Continuous Drain (Id) @ 25°C: 43.5A (Ta), 337A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.1mOhm @ 90A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 590µA
  • Gate Charge (Qg) (Max) @ Vgs: 147nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 10100pF @ 40V
  • FET Feature: -
  • Power Dissipation (Max): 5W (Ta), 300W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-DFNW (8.3x8.4)
  • Package / Case: 8-PowerTDFN
  • Base Part Number: NVMTS1
  • detail: N-Channel 80V 43.5A (Ta), 337A (Tc) 5W (Ta), 300W (Tc) Surface Mount 8-DFNW (8.3x8.4)
