دیتاشیت FCH150N65F-F155

FCH150N65F

مشخصات دیتاشیت

نام دیتاشیت FCH150N65F
حجم فایل 1532.862 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت FCH150N65F

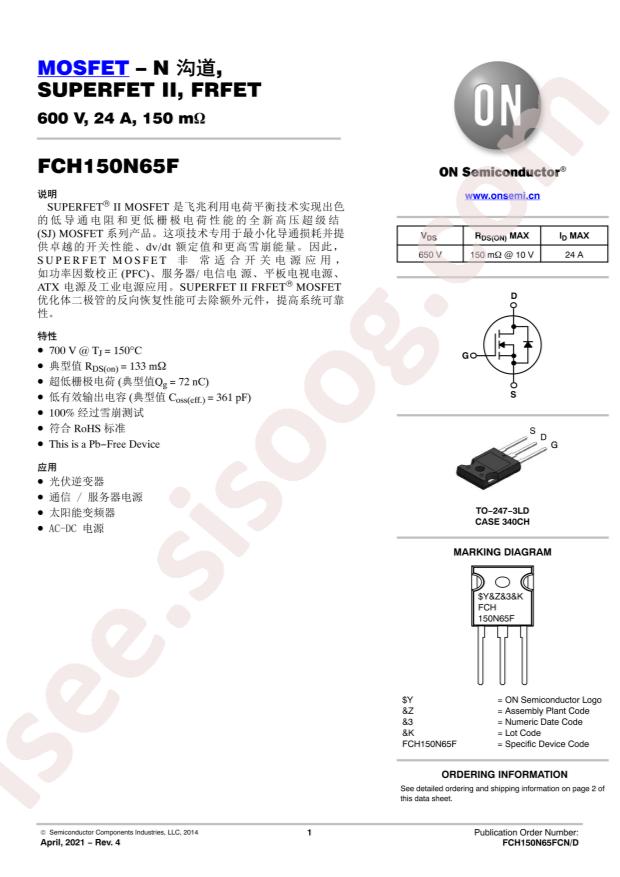

FCH150N65F Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: SuperFET® II
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 150mOhm @ 12A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 2.4mA
  • Gate Charge (Qg) (Max) @ Vgs: 94nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 3737pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 298W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247 Long Leads
  • Package / Case: TO-247-3
  • Base Part Number: FCH15
  • detail: N-Channel 650V 24A (Tc) 298W (Tc) Through Hole TO-247 Long Leads
