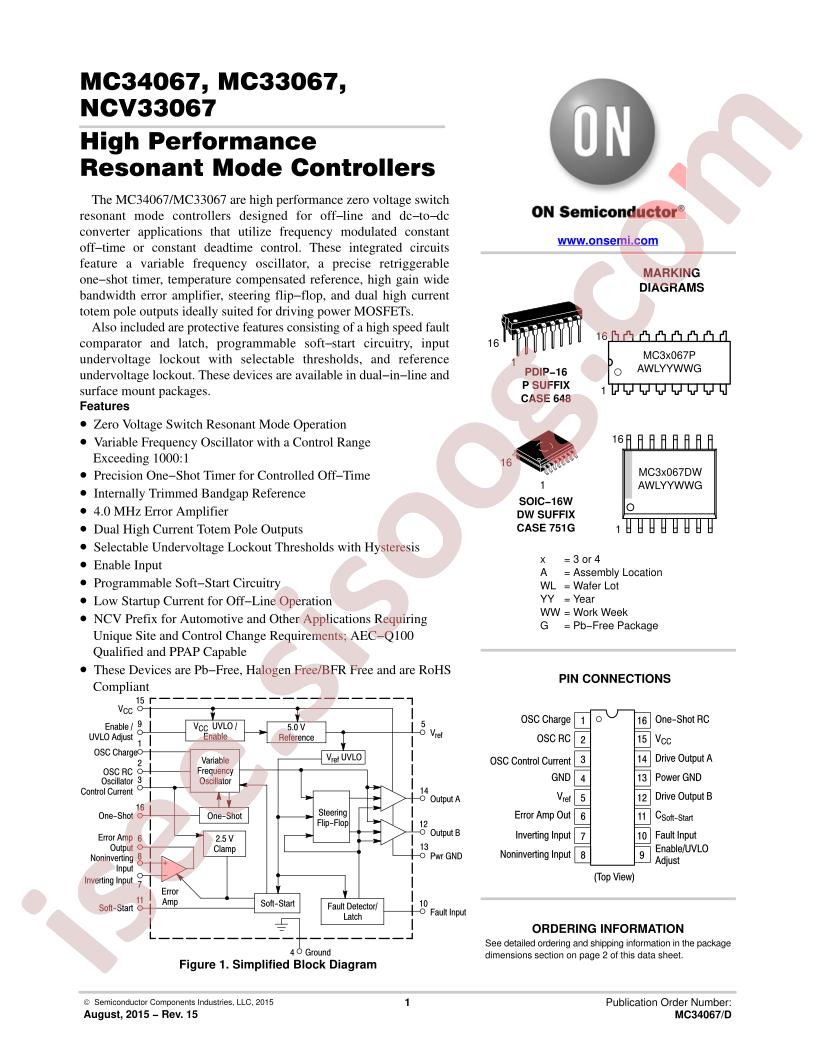

MC34067, 33067 دیتاشیت

MC34067, 33067

مشخصات دیتاشیت

نام دیتاشیت MC34067, 33067
حجم فایل 547.798 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

مشاهده دیتاشیت MC34067, 33067

دانلود دیتاشیت

سایر مستندات

MC34067DWR2G 16 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: onsemi MC34067PG
  • Supply Voltage: 8.6V~20V
  • Switching Frequency: 2.05MHz
  • Operating Temperature: 0°C~+70°C@(Ta)
  • Package: PDIP-16
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Not For New Designs
  • Output Type: Transistor Driver
  • Function: Step-Up/Step-Down
  • Output Configuration: Positive, Isolation Capable
  • Number of Outputs: 2
  • Output Phases: 1
  • Voltage - Supply (Vcc/Vdd): 8.6V ~ 20V
  • Frequency - Switching: 2.05MHz
  • Duty Cycle (Max): -
  • Synchronous Rectifier: No
  • Clock Sync: No
  • Serial Interfaces: -
  • Control Features: Enable, Soft Start
  • Mounting Type: Through Hole
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Base Part Number: MC34067
  • detail: Flyback Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-PDIP
