NTMFS4C020NT3G دیتاشیت

مشخصات دیتاشیت

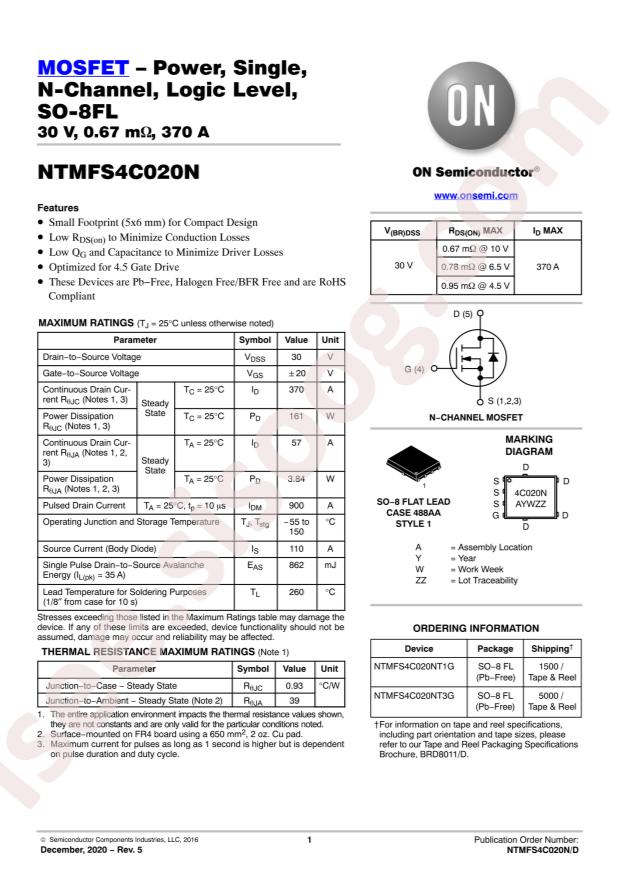

مشاهده دیتاشیت NTMFS4C020NT3G	دانلود دیتاشیت

RoHS: true
Type: N Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi NTMFS4C020NT3G
Operating Temperature: -55°C~+150°C@(Tj)
Power Dissipation (Pd): 161W
Total Gate Charge (Qg@Vgs): 139nC@10V
Drain Source Voltage (Vdss): 30V
Input Capacitance (Ciss@Vds): 10144pF@15V
Continuous Drain Current (Id): 47A;303A
Gate Threshold Voltage (Vgs(th)@Id): 2.2V@250uA
Reverse Transfer Capacitance (Crss@Vds): 148pF@15V
Drain Source On Resistance (RDS(on)@Vgs,Id): 0.56mΩ@10V,30A
Package: SO-8FL
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 47A (Ta), 303A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 0.7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 139nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 10144pF @ 15V
FET Feature: -
Power Dissipation (Max): 3.2W (Ta), 134W (Tc)
Mounting Type: Surface Mount
Supplier Device Package: 5-DFN (5x6) (8-SOFL)
Package / Case: 8-PowerTDFN, 5 Leads
Base Part Number: NTMFS4
detail: N-Channel 30V 47A (Ta), 303A (Tc) 3.2W (Ta), 134W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
