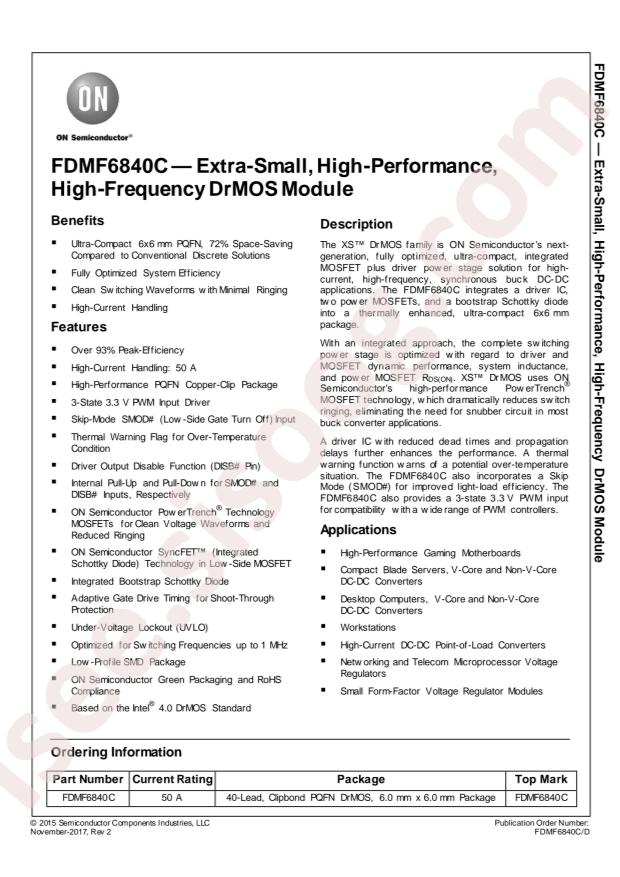

FDMF6840C 数据手册
其他文档
FDMF6840C 19 pages
技术规格
- RoHS: true
- Feature: Thermal Protection(OPT)
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: onsemi FDMF6840C
- Load Type: MOSFET
- Supply Voltage: 4.5V~5.5V
- Driven Configuration: Half Bridge
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: PQFN-40
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Output Configuration: Half Bridge
- Applications: Synchronous Buck Converters
- Interface: PWM
- Technology: DrMOS
- Rds On (Typ): 1Ohm LS, 1Ohm HS
- Current - Output / Channel: 50A
- Current - Peak Output: -
- Voltage - Supply: 4.5V ~ 5.5V
- Voltage - Load: 3V ~ 16V
- Features: Bootstrap Circuit, Status Flag
- Fault Protection: Over Temperature, Shoot-Through, UVLO
- Mounting Type: Surface Mount
- Package / Case: 40-PowerTFQFN
- Supplier Device Package: 40-PQFN (6x6)
- Base Part Number: FDMF6840
- detail: Half Bridge Driver Synchronous Buck Converters DrMOS 40-PQFN (6x6)
