NTMFS08N2D5C دیتاشیت

NTMFS08N2D5C

مشخصات دیتاشیت

نام دیتاشیت NTMFS08N2D5C
حجم فایل 84.439 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

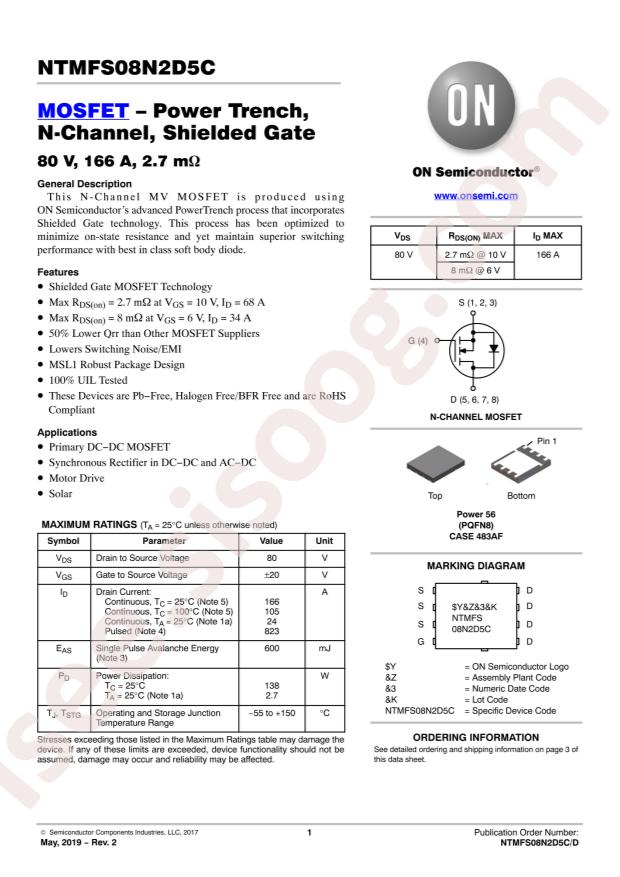

مشاهده دیتاشیت NTMFS08N2D5C

دانلود دیتاشیت

سایر مستندات

NTMFS08N2D5C 8 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NTMFS08N2D5C
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 138W
  • Total Gate Charge (Qg@Vgs): 84nC@10V
  • Drain Source Voltage (Vdss): 80V
  • Input Capacitance (Ciss@Vds): 6240pF@40V
  • Continuous Drain Current (Id): 166A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@380uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 2.7mΩ@68A,10V
  • Package: Power-56-8
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 80V
  • Current - Continuous Drain (Id) @ 25°C: 166A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Rds On (Max) @ Id, Vgs: 2.7mOhm @ 68A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 380µA
  • Gate Charge (Qg) (Max) @ Vgs: 84nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 6240pF @ 40V
  • FET Feature: -
  • Power Dissipation (Max): 138W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: Power56
  • Package / Case: 8-PowerTDFN
  • Base Part Number: NTMFS08
  • detail: N-Channel 80V 166A (Tc) 138W (Tc) Surface Mount Power56
