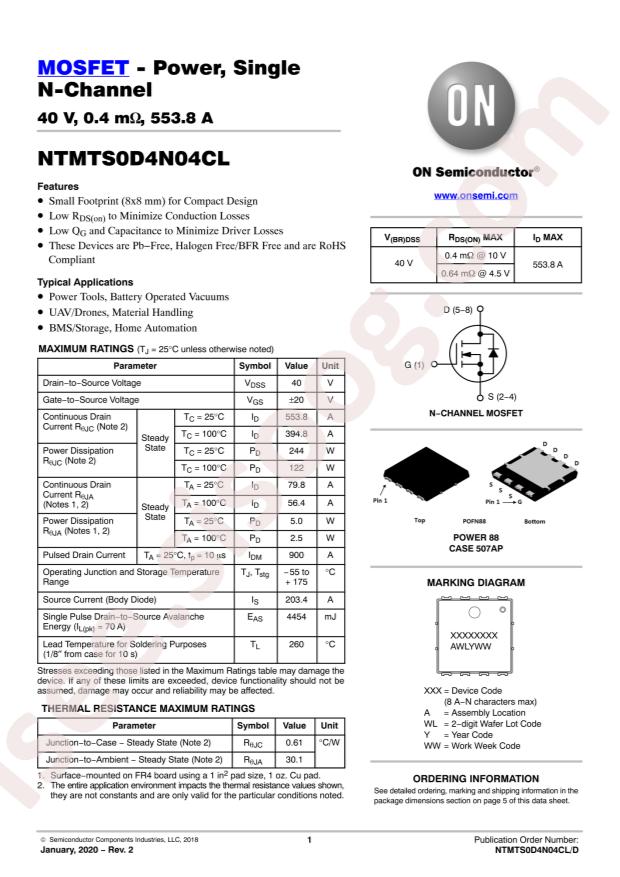

NTMTS0D4N04CLTXG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTMTS0D4N04CLTXG
|
|
حجم فایل
|
97.021
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTMTS0D4N04CLTXG
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
5W;244W
-
Total Gate Charge (Qg@Vgs):
341nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
20600pF@20V
-
Continuous Drain Current (Id):
79.8A;553.8A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
0.4mΩ@50A,10V
-
Package:
DFNW-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
79.8A (Ta), 553.8A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
400µOhm @ 50A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
341nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
20600pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
5W (Ta), 244W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-DFNW (8.3x8.4)
-
Package / Case:
8-PowerTDFN
-
Base Part Number:
NTMTS0D
-
detail:
N-Channel 40V 79.8A (Ta), 553.8A (Tc) 5W (Ta), 244W (Tc) Surface Mount 8-DFNW (8.3x8.4)
