FGH40T65SPD-F085 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FGH40T65SPD-F085
|
|
حجم فایل
|
85.035
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:

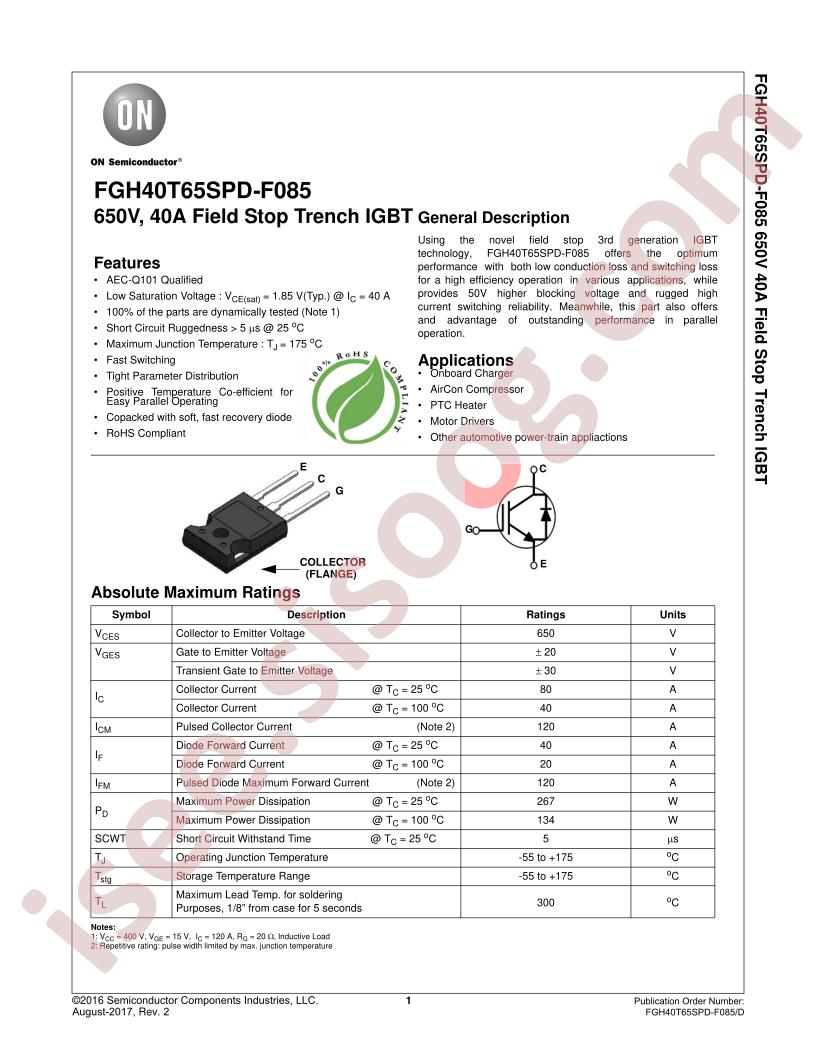

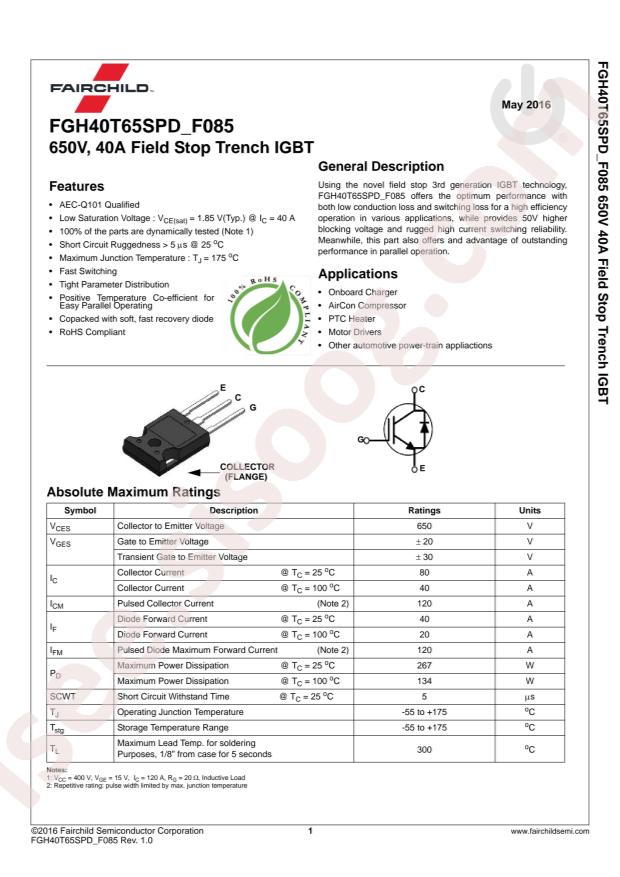

onsemi FGH40T65SPD-F085
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
NPT
-
Voltage - Collector Emitter Breakdown (Max):
650V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
120A
-
Vce(on) (Max) @ Vge, Ic:
2.4V @ 15V, 40A
-
Power - Max:
267W
-
Switching Energy:
1.16mJ (on), 270µJ (off)
-
Input Type:
Standard
-
Gate Charge:
36nC
-
Td (on/off) @ 25°C:
18ns/35ns
-
Test Condition:
400V, 40A, 6Ohm, 15V
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
FGH40
-
detail:
IGBT NPT 650V 80A 267W Through Hole TO-247-3
