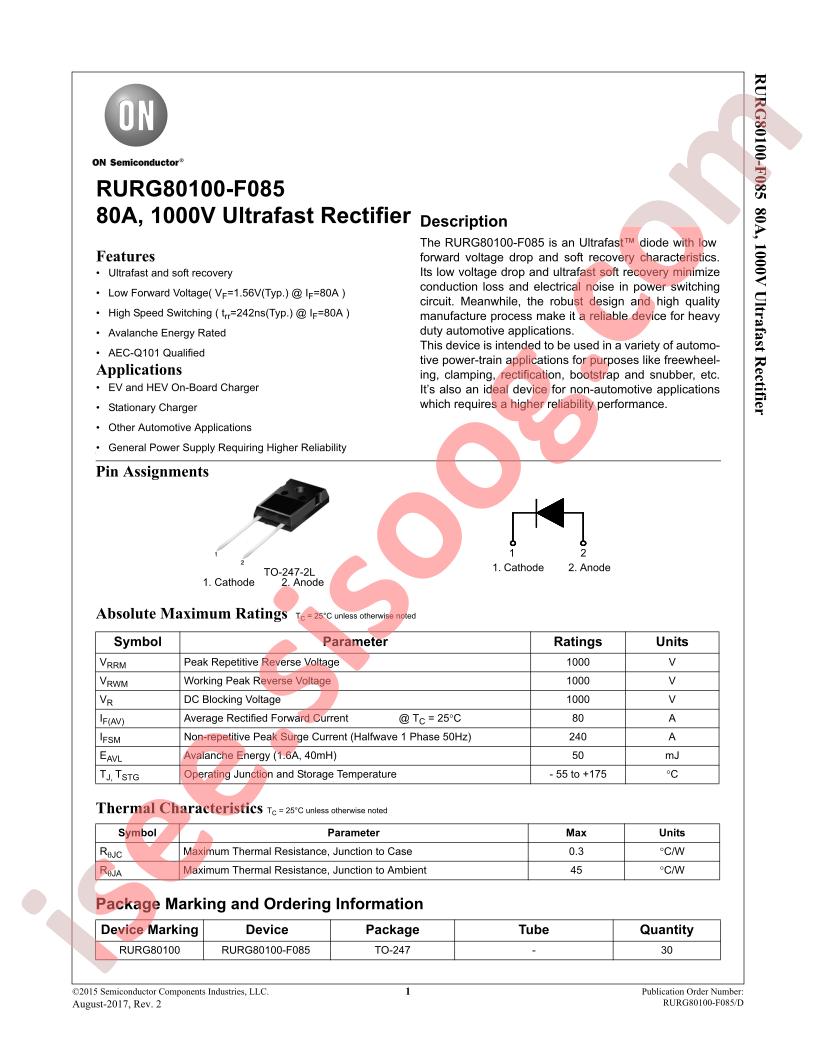

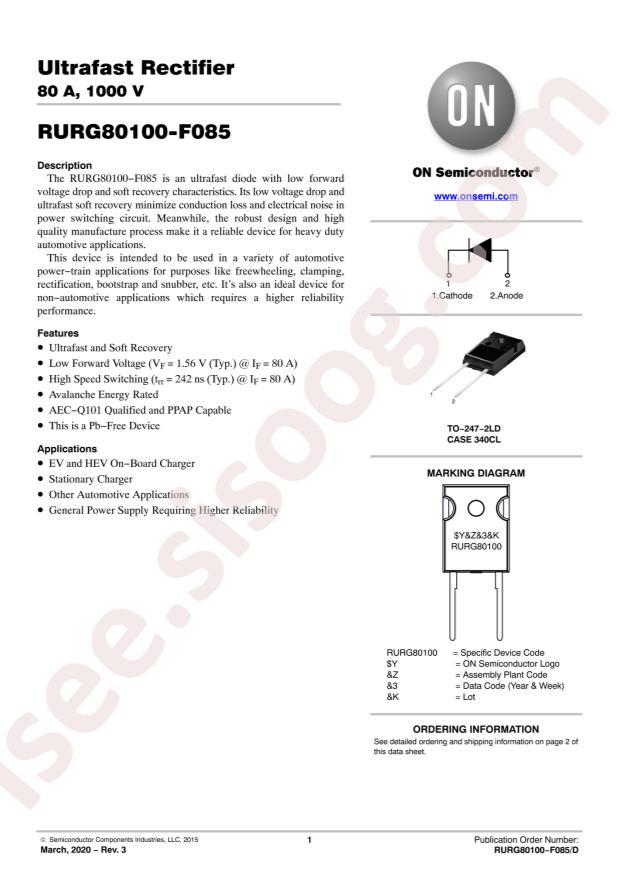

دیتاشیت RURG80100-F085
مشخصات دیتاشیت
| نام دیتاشیت |
RURG80100_F085
|
| حجم فایل |
672.843
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - General Purpose
-
Datasheet:
onsemi RURG80100-F085
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
1kV
-
Forward Voltage (Vf@If):
1.56V@80A
-
Reverse Leakage Current:
250uA@1kV
-
Average Rectified Current (Io):
80A
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
1000V
-
Current - Average Rectified (Io):
80A
-
Voltage - Forward (Vf) (Max) @ If:
1.9V @ 80A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Reverse Recovery Time (trr):
200ns
-
Current - Reverse Leakage @ Vr:
250µA @ 80V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-2
-
Supplier Device Package:
TO-247-2
-
Operating Temperature - Junction:
-65°C ~ 175°C
-
Base Part Number:
RURG80
-
detail:
Diode Standard 1000V 80A Through Hole TO-247-2
