FDH047AN08A0 دیتاشیت

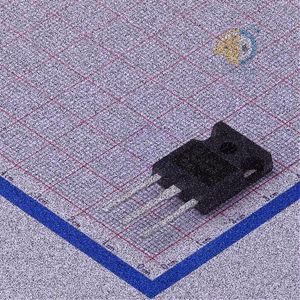

FDH047AN08A0

مشخصات دیتاشیت

نام دیتاشیت FDH047AN08A0
حجم فایل 56.387 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

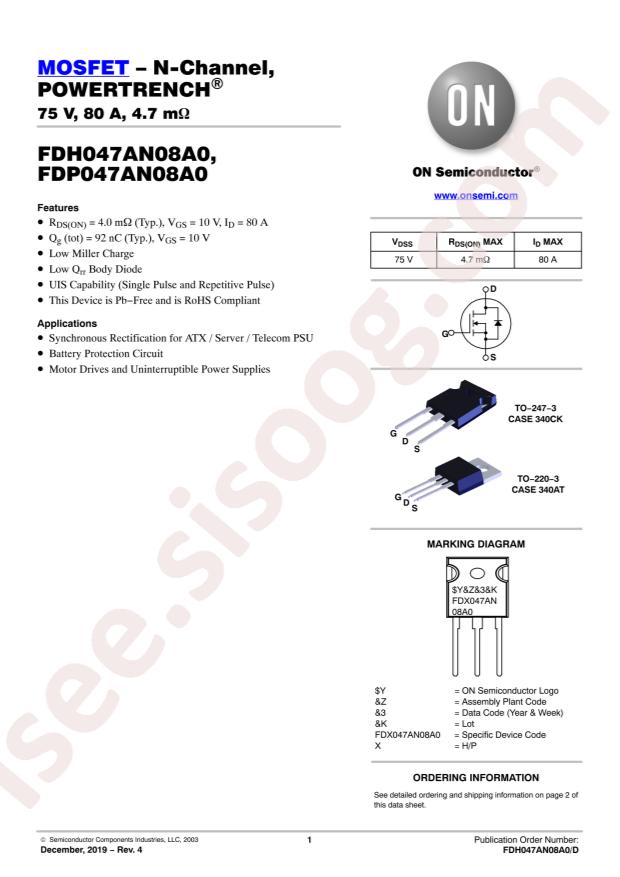

مشاهده دیتاشیت FDH047AN08A0

دانلود دیتاشیت

سایر مستندات

FDH047AN08A0 10 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDH047AN08A0
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 310W
  • Total Gate Charge (Qg@Vgs): 138nC@10V
  • Drain Source Voltage (Vdss): 75V
  • Input Capacitance (Ciss@Vds): 6600pF@25V
  • Continuous Drain Current (Id): 80A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 4.7mΩ@10V,80A
  • Package: TO-247
  • Manufacturer: onsemi
  • Series: PowerTrench®
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 75V
  • Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Rds On (Max) @ Id, Vgs: 4.7mOhm @ 80A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 138nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 6600pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 310W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-3
  • Package / Case: TO-247-3
  • Base Part Number: FDH047
  • detail: N-Channel 75V 15A (Tc) 310W (Tc) Through Hole TO-247-3
