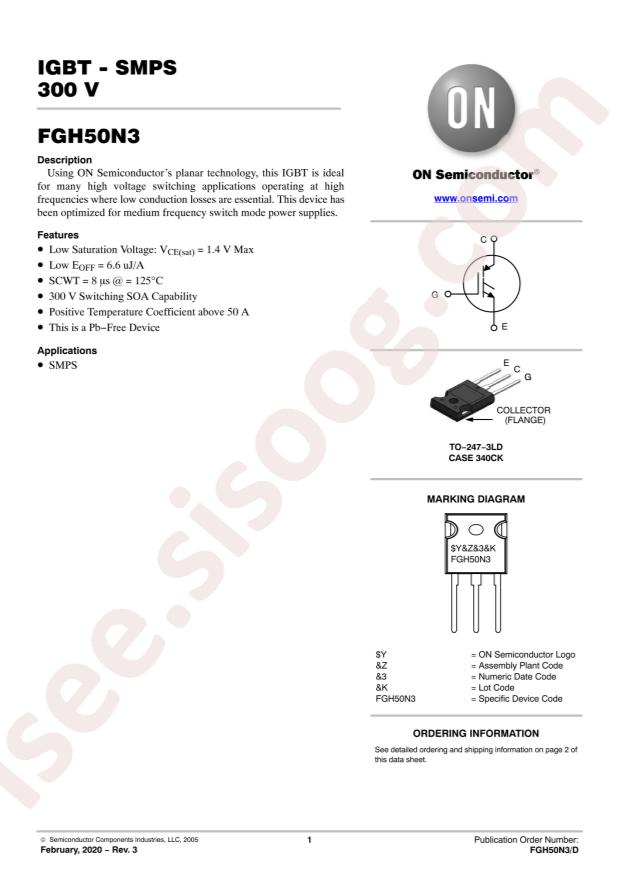

FGH50N3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FGH50N3
|
|
حجم فایل
|
49.284
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
PT
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
onsemi FGH50N3
-
Operating Temperature:
55°C~+150°C@(Tj)
-
Collector Current (Ic):
75A
-
Power Dissipation (Pd):
463W
-
Turn?on Delay Time (Td(on)):
20ns
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.13mJ
-
Total Gate Charge (Qg@Ic,Vge):
180nC
-
Turn?off Delay Time (Td(off)):
135ns
-
Pulsed Collector Current (Icm):
240A
-
Turn?off Switching Loss (Eoff):
0.092mJ
-
Collector-Emitter Breakdown Voltage (Vces):
300V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.4V@15V,30A
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
PT
-
Voltage - Collector Emitter Breakdown (Max):
300V
-
Current - Collector (Ic) (Max):
75A
-
Current - Collector Pulsed (Icm):
240A
-
Vce(on) (Max) @ Vge, Ic:
1.4V @ 15V, 30A
-
Power - Max:
463W
-
Switching Energy:
130µJ (on), 92µJ (off)
-
Input Type:
Standard
-
Gate Charge:
180nC
-
Td (on/off) @ 25°C:
20ns/135ns
-
Test Condition:
180V, 30A, 5Ohm, 15V
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
FGH50
-
detail:
IGBT PT 300V 75A 463W Through Hole TO-247-3
