دیتاشیت FCH060N80-F155
مشخصات دیتاشیت
| نام دیتاشیت |
FCH060N80
|
| حجم فایل |
499.437
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

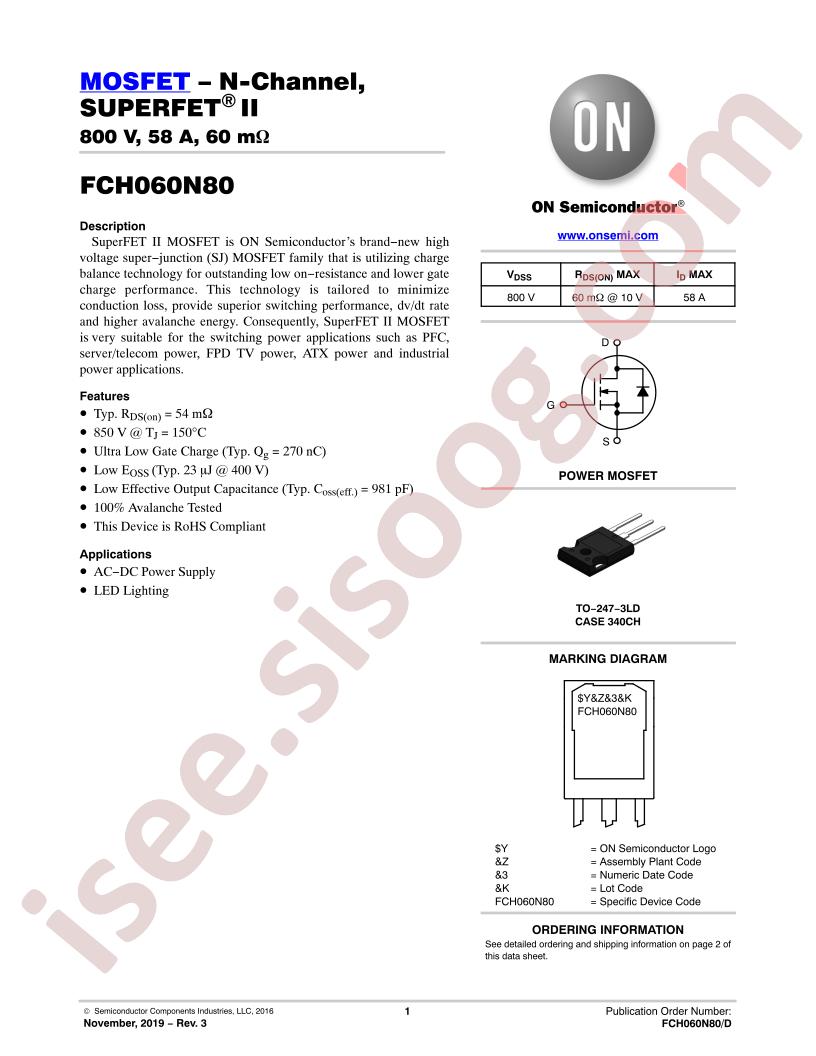

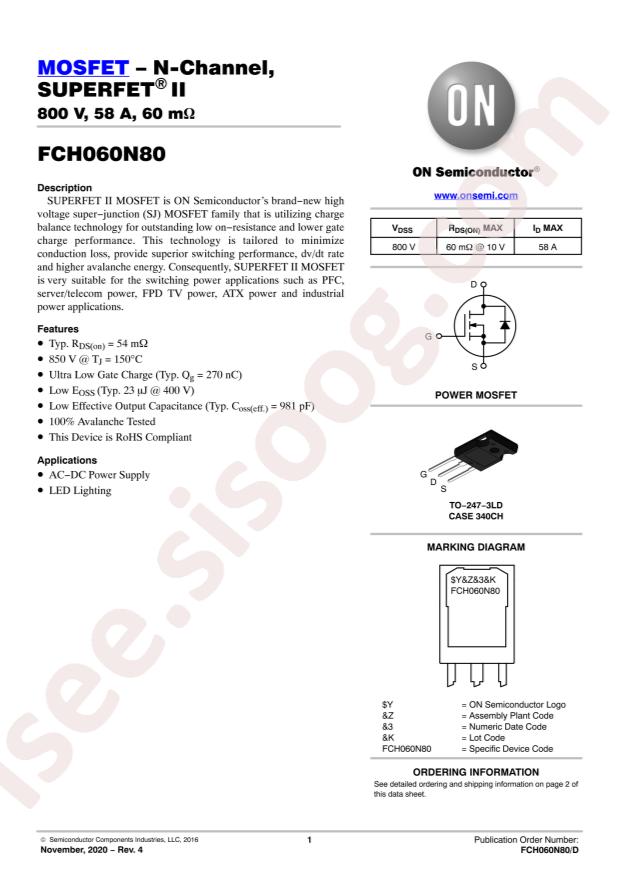

onsemi FCH060N80-F155
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
500W
-
Total Gate Charge (Qg@Vgs):
350nC@10V
-
Drain Source Voltage (Vdss):
800V
-
Input Capacitance (Ciss@Vds):
14685pF@100V
-
Continuous Drain Current (Id):
56A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@5.8mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
60mΩ@29A,10V
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
SuperFET® II
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
800V
-
Current - Continuous Drain (Id) @ 25°C:
56A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
60mOhm @ 29A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 5.8mA
-
Gate Charge (Qg) (Max) @ Vgs:
350nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
14685pF @ 100V
-
FET Feature:
Super Junction
-
Power Dissipation (Max):
500W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247 Long Leads
-
Package / Case:
TO-247-3
-
Base Part Number:
FCH06
-
detail:
N-Channel 800V 56A (Tc) 500W (Tc) Through Hole TO-247 Long Leads
