دیتاشیت STK554U392A-E

STK554U392A-E

مشخصات دیتاشیت

نام دیتاشیت STK554U392A-E
حجم فایل 352.023 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

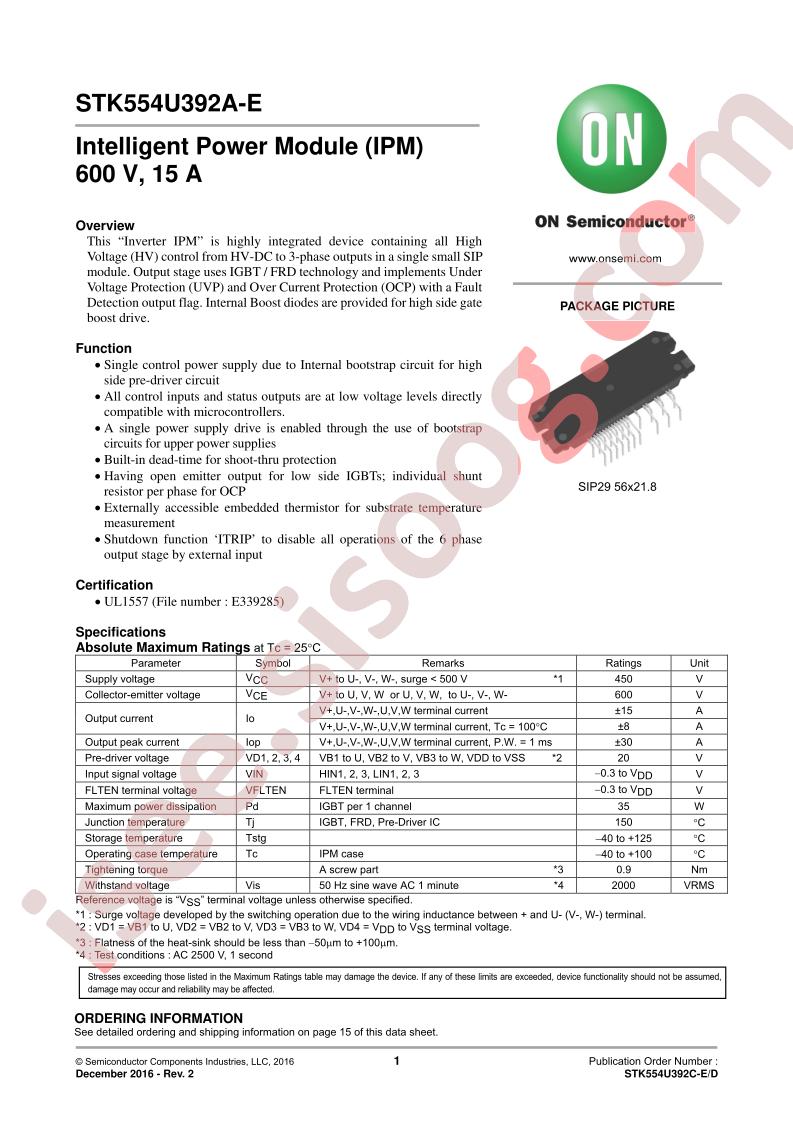

دانلود دیتاشیت STK554U392A-E

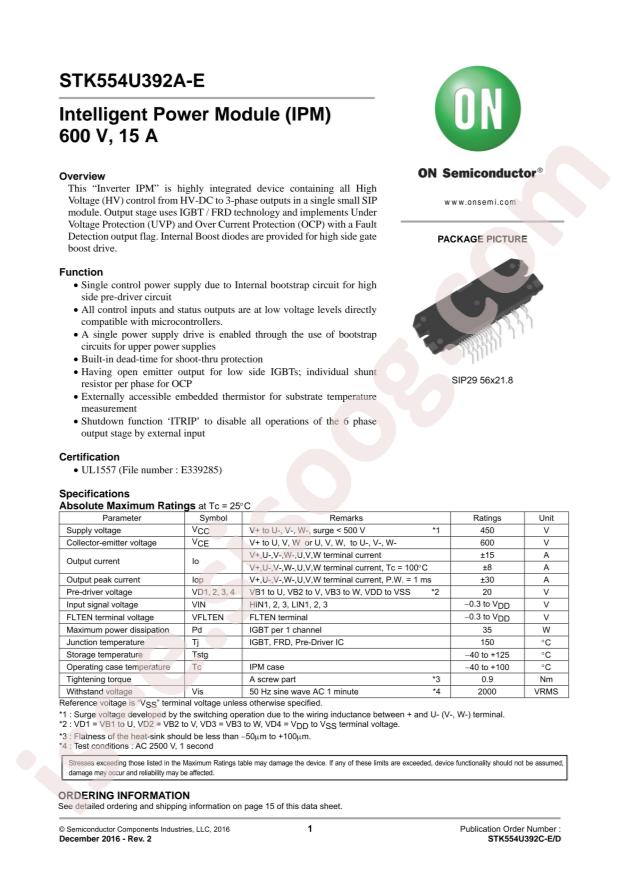

STK554U392A-E Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: onsemi STK554U392A-E
  • Package: SIP-29
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • Output Configuration: Half Bridge (3)
  • Applications: AC Motors
  • Interface: Logic
  • Load Type: Inductive
  • Technology: IGBT
  • Rds On (Typ): -
  • Current - Output / Channel: 15A
  • Current - Peak Output: 30A
  • Voltage - Supply: 12.5V ~ 17.5V
  • Voltage - Load: 450V (Max)
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Features: Bootstrap Circuit, Status Flag
  • Fault Protection: Current Limiting, Shoot-Through, UVLO
  • Mounting Type: Through Hole
  • Package / Case: 29-SSIP Module, 21 Leads, Formed Leads
  • Supplier Device Package: 21-SIP
  • Base Part Number: STK554
  • detail: Half Bridge (3) Driver AC Motors IGBT 21-SIP
